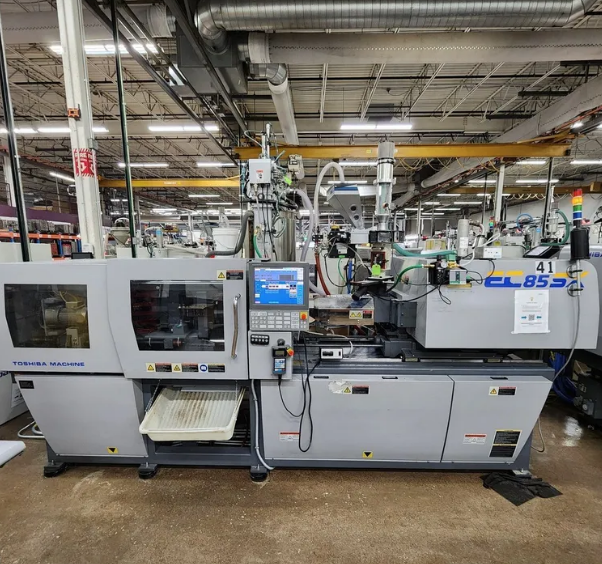

Toshiba EC85SXV50-U22-2A 85 T

Type All Electric
Clamping Force Tonnage 85 T
Shot Volume (PS) 3.3 oz
Screw Diameter 1.26"
Maximum Injection Pressure 31900 psi
Maximum Holding Pressure 31900 psi
Plasticizing Capacity (PS) STD 6.2 oz
Tie Bar Distance H 16.1"
Tie Bar Distance V 14.2"
Platen Dimension H 22.8"
Platen Dimension V 20.9"
Clamp Stroke 11.8"
Maximum Daylight 30.3"
Mold Height Min 5.9"
Mold Height Max 18.5"
Ejector Force 2.2 T
Ejector Stroke 2.8"
Heater Capacity 6.8 kw
Injection Orientation Horz
Machine under power Under power running with mould
Control CNC (InjectvisorV50)
Dimensions 13.5 x 3.9 x 5.2
Weight 7,200 lbs
