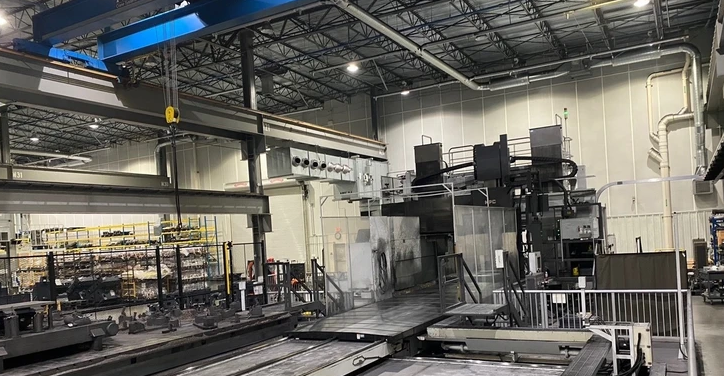

Toshiba MPC-3180B 3 Axis

Fanuc 31i CNC Control
Dual pallet changer
120-position automatic tool changer
Automatic Attachment Index
Snout
Deep 90-degree attachment
5-face attachment
90-degree attachment
Right-angle indexing head 72 positions/5°
Small angle head
Snout 190 milling head

X-axis travel 354.3"
Y-axis travel 153.5"
Z-axis travel 35.4"
W-axis travel 63"
Distance table top to vertical spindle nose 96.1"
Maximum distance between columns 122.0"
Working surface of tables 315" × 106" (two)
Table load capacity 44,000 lbs
Spindle motor 40 hp
Spindle speed 5–3000 rpm
Spindle taper MAS BT50
Tool changer capacity 180 tools
Maximum tool length 23.6"
Maximum tool diameter 11.4"/5.9"
Maximum tool weight 66 lbs
Overall dimensions 96' × 33' × 25' H
Machine weight 330,000 lbs
