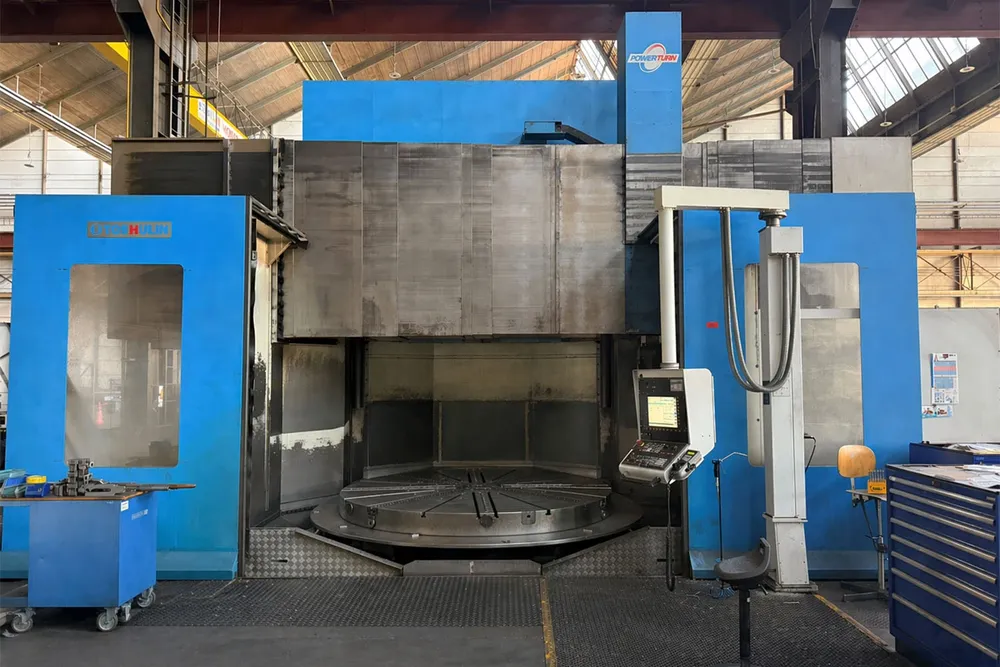

Toshulin POWERTURN 3000 Table diameter: 3000 mm
Ref :
2793545-3-MT
Condition :
Used
Manufacturer :
Toshulin
Model :
POWERTURN 3000
Short Description :
Table diameter: 3000 mm
Year(s) :
2010
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Double-column vertical lathe / VTL
Control: Siemens 840D
Table diameter: 3000 mm
Maximum turning diameter: 3600 mm
Maximum table-to-ram distance: 2640 mm
Maximum workpiece weight: 30 tons
Ram cross-section: 240 × 240 mm
Vertical ram travel: 1500 mm
Horizontal ram travel (left/right from table axis): 1930 / 2250 mm (+920 mm for tool change)
Cross slide travel: 1800 mm
Table speed: 200 rpm (2-step gearbox)
Main spindle power: 80 kW
Cutting feed: up to 4000 mm/min
Rapid feed: 10000 mm/min
Tool changer: 45 positions (including 20 Capto C8 holders)
High-pressure coolant system
Machine weight: 72,000 kg
Machine dimensions: 10570 × 8445 × 7375 mm
