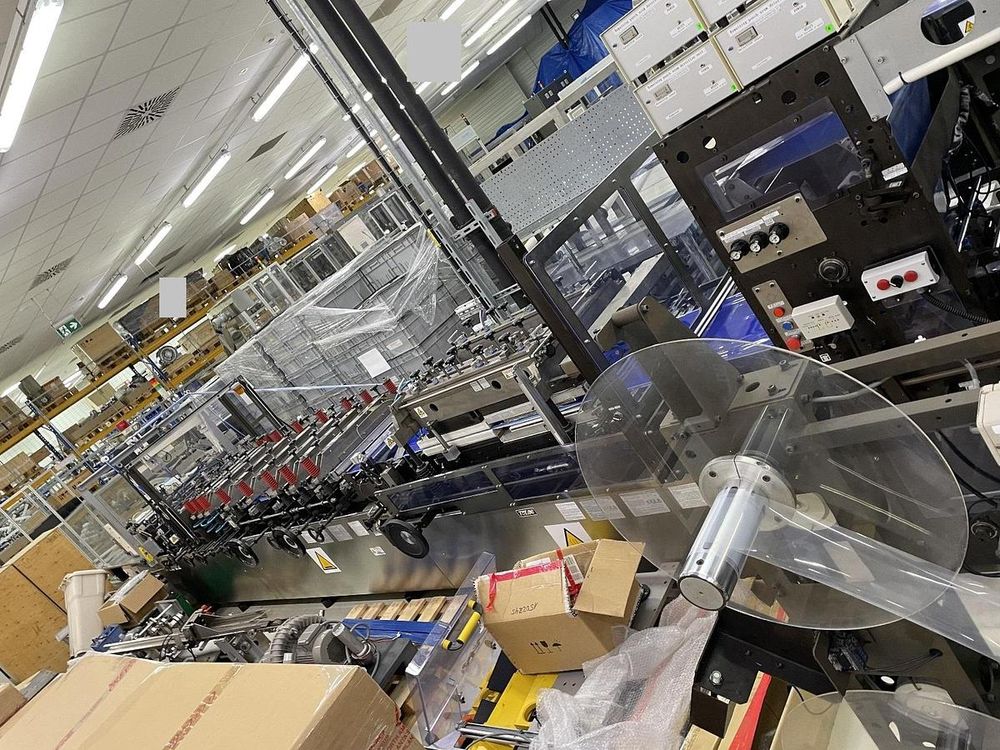

Totani BH60DLLLS Pouch machine

Totani BH 60D LLLS
Width: 200-600 mm
Maximum length: 500 mm
Unwinding dimensions:
Maximum diameter: 800 mm
Maximum width: 1200 mm
Maximum number of cycles: 180 cycles/minute
Smooth film
Maximum number of cycles:
240/minute - feed: 140 mm
220m/minute - feed: 170 mm
200/minute - feed: 205 mm
180/minute - feed: 255 mm
Printed film
Maximum number of cycles:
240/minute - feed: 125 mm
220m/minute - feed: 155 mm
200/minute - feed: 185 mm
180/minute - feed: 235 mm
Heater and cooler
Heater longitudinal(feed direction)
Effective welding length: 600 mm - 5 units
Longitudinal cooler(feed direction)
Effective cooling length: 500 mm -5 units
Transverse heater(wide direction)
Effective welding length: 600 mm-2 units
Longitudinal cooler(wide direction)
Effective cooling length: 600 mm - 1 unit
Transverse sealing bar - maximum welding width: 80 mm
Longitudinal sealing bar - maximum welding width: 50 mm

Totani ST 24
2012
Spout inserter
Configuration:
Supply Conveyor
Pouch Carrier
Pouch Supply and ejection unit
Corner Cutter
Opening Edge
Sealer and Cooler
Spout Supply Unit
The preheater
