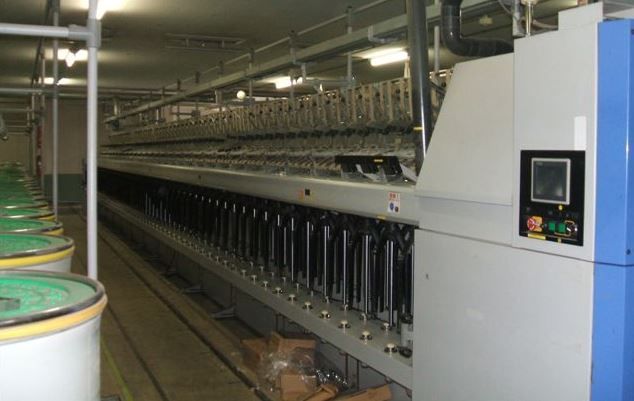

Toyoda FL-100 Roving Frames

Ref : 2234658-1-AS
Condition : Used
Manufacturer : Toyoda
Model : FL-100
Short Description : Roving Frames
Year(s) : 1997
Quantity : 1
Location : Seller or machines location:
MIDDLE EAST

No. of Spindles: 96 (Can be converted to 120)
Used in Japan
Staff (4 spindles): 440 mm
Full bobbin diameter: 152 mm
Lift: 406 mm
Closed Flyers
Easy Doffing Device

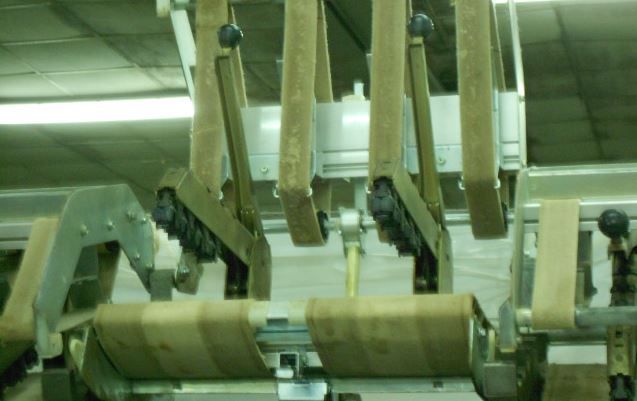

Drafting system: 4-roller double apron D-type
For 100% Cotton, Combed or Carded
Processing Fibre Up to 38 mm, Ne 10-20s
Weighting Arm: SKF-PK1500-001938
Short bottom apron
Cradle type: SKF OH 514-110
Cradle radius: 34.5 mm, Width: 40 mm
Bottom Roller= 28.5 (F) x 28.5 (S) x 28.5 (T) x 28.5 (B)
Top Roller SKF
LP 315-110 (F) x LP 315-110 (S) x LP 317-110 (T) x LP 315-110 (B)
Diameter of flyer spindle, 22 mm
Light allow metal flyer, SL reinforced, Slit less type (FL 100)
Size of feeding can: 508 mm (20") x 1321 mm (52") size
Single Sliver feeding type
Indicator: 3 Shifts
Clearer: Positive intermittent roving clearer with comb for top and bottom rollers
Electric cushion starter control for run and inching
Automatic Lubrication for Flyer and Bobbin Gear
Machine back cover with Bobbin jump prevention device, with
Voltage: AC 220 / 60 Hz

Special OPTIONS included are:
1. Roving Tension Controller
2. Flyer Speed Control by Invertor
3. Main gearing in oil bath
4. Draft gearing grease
5. Irregular roving preventing device
6. Package shoulder collapse preventing device
7. Stop motion upon length measured setting completion
