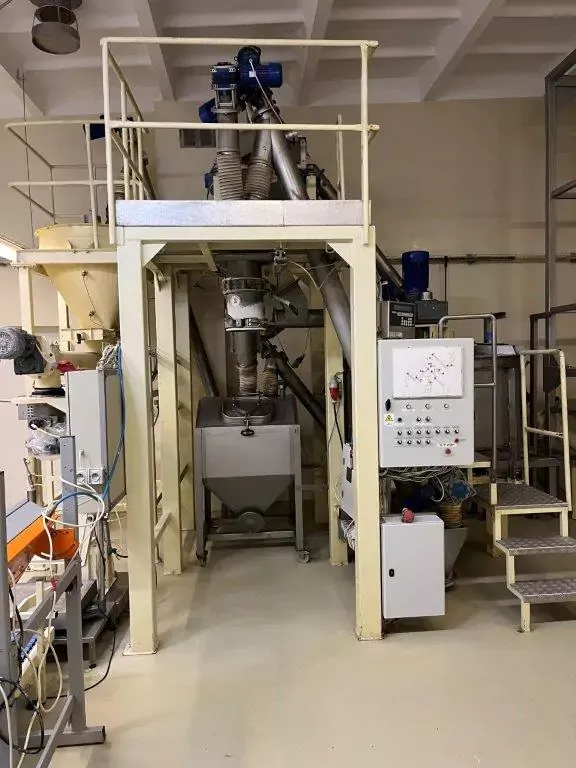

TPL 50 Strain gauge bagging line for filling open bags

Line for packing powders into bags

Main elements of the line:
– Balance pre-tank with supporting structure and distribution tip
– SP150 – 1500 feeding screw feeder with a pneumatically controlled butterfly flap at the outlet
– Bridge load carrier TM 150 E – Max.15O, platform dimensions 600 x 800 mm with connecting cable between platform and weighing indicator 10.5 m
– Pneumatic mounting stub with a diameter of 280 mm
– Pneumatically controlled bag lifting device
– Aspiration tip including connecting adapter, handle and connecting hoses
– Roller conveyor
– Stand with holders for mounting the electrical box
– Pneumatic equipment with compressed air treatment
– Electrical control wall box with automation equipment
– Cabling between the mentioned elements, including cable trays and bridges for their routing

Main technical data (according to ĆSN EN 45 501 + AC)
Metrological static data (according to ĆSN EN 45 501 + AC)
Type 69512520
Accuracy class III
Upper weighing limit (Max) 150 kg
Lower weighing limit (Min) 1 kg
Value of the plot (e = d) Number of plots 0.05 kg
Tare T subtractive 0-150 kg
Permissible weight error 0-25 kg ± 0.025 kg, 25-100 kg ± 0.050 kg, 100-150 kg ± 0.075 kg

Dosing mode data
Scale efficiency (with a specific bulk mass of 0.7kg/dm3) 150 bags/h
Permissible dose error (depending on the dose correction setting) ± 0.2 kg
Dose size 20-50 kg
Electric energy
supply voltage 3+N PE 400/230V
frequency 50 Hz ± 1 % fluctuations according to ĆSN 99 4102
max. current 16 A
power consumption 8 kVA
safety class I

Compressed air
Without lubrication 0.6 -0.9 MPa
max. consumption 2 Nl/cycle
air quality according to ĆSN ISO 8573-1 class 5
