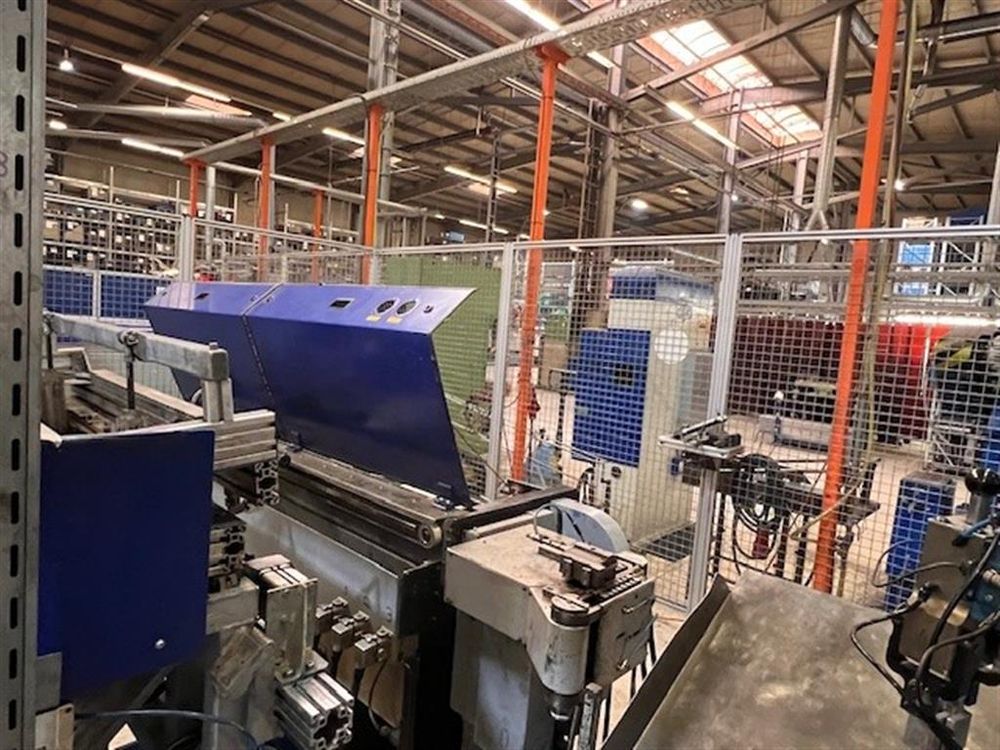

Tracto-Technik Tubotron 20 CNC

Pipe-Bending Machine
TRACTO-TECHNIK Tubotron 20 CNC
Year of Manufacture: 2004

Tube Diameter: 20 mm
Bending Radius Max.: 100 mm
Control for Program: S7-300
Tube Pipe Draw Up Length: 2270 mm
Air Pressure Required: 7 bar
Total Power Requirement: 15 kW
Bending Speed: 540 °/sec
Control Voltage: 24 V DC
Connection Voltage: 400 V / 50 Hz / 3 Ph
Dimensions (Bending Unit): 1.8 × 1.4 × 1.6 m
Dimensions (Feeding Unit): 1.2 × 1.5 × 1.55 m
Machine Dimensions Approx.: 3.0 × 1.0 × 1.2 m

Additional Information:
Mandrel Tube Bending Machine
Bending Direction: RIGHT
Operation via SIMANTIC Panel PC control unit
Pneumatics: Pressure 7 bar; Flow Rate 200 l/min
Hydraulics: Pressure 150 bar; Flow Rate 6.8 l/min

Equipment/Accessories:
Oil drip tray: 3.1 × 0.96 × 0.02 m
Spare parts and accessories
