1/1

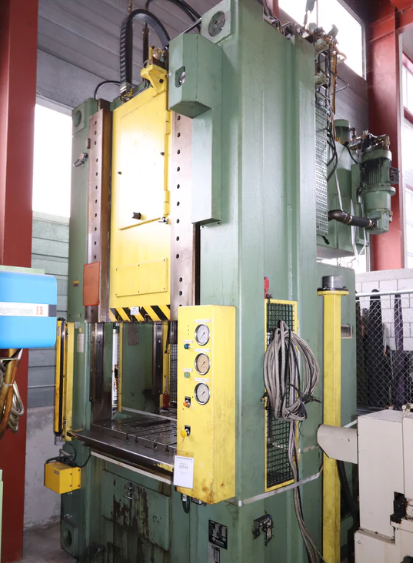

Tranemo DPA-160-10 1600 kN
Ref :
2804956-3-CP
Condition :
Used
Manufacturer :
Tranemo
Model :
DPA-160-10
Pressure :
1600 kN
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Press Force: 1600 kN
Total Stroke: 500 mm
Table Size: 1000 × 700 mm
Slide Diameter: 70 mm
Longitudinal Travel: 1000 mm
Rapid Traverse: 530 mm/s
Press Speed: 23 mm/s
Return Speed: 580 mm/s
Ejector Force: 300 kN
Ejector Stroke: 250 mm
Motor Power: 45 kW
Power Supply: 3 × 380 V, 50 Hz
Die Cushion, Hydraulic
Die Cushion Force: 800 kN
Die Cushion Stroke: 200 mm
Machine Dimensions: 2700 × 2200 × 3900 mm
