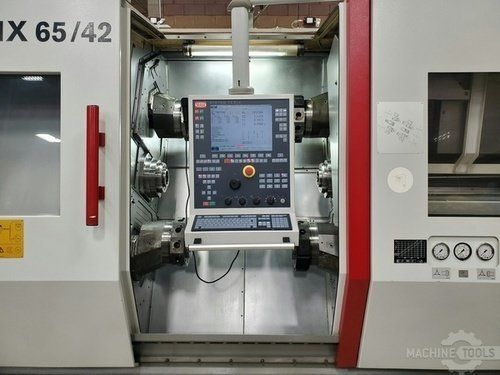

Traub CNC CONTROL 5,000 RPM TNX 65/42 15 Axis

Max turning length 25.6″
Bar capacity 2.5″
Chuck size 6.8898″
Spindle speed 5,000 RPM
Motor power 32.2 HP
Tailstock no
Live tooling yes
Sub spindle yes
Turrets (4) X-Y-Z with 10 positions each
Thru hole main and sub spindle 65 mm
Control Tx 8i-S control
Weight 22,000 lbs

Equipped with
Sub spindle coolant flush
Servo driven gantry receiver
Hydraulic swivel with pneumatic finished part and bar remnant gripper
Finished part conveyor belt
Resy paper band coolant filter
Knoll coolant tank
BKW refrigerated coolant temperature control
20 bar high pressure coolant pump
8 bar low pressure coolant pump
Knoll chip conveyor
FMB Turbo 5-55 magazine bar feeder (new in 2010)
Hainbuch main spindle collet chuck
Rohm sub spindle 2-jaw chuck
Machine parts manuals
Electrical manuals
Service manuals
Programming manuals
Machine parameter backup on USB stick
Available tooling
