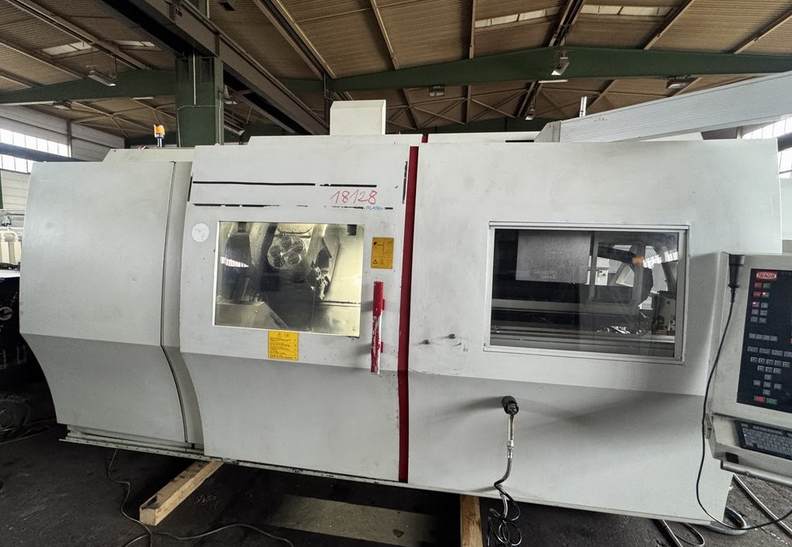

Traub TRAUB TX8i 5,000 rpm TNX65 5 Axis

X-Axis Travel: 290 mm
Y-Axis Travel: 165 mm
Z-Axis Travel: 600 / 950 mm
C-Axis Speed: 1–500 rpm
B-Axis: 360°

Control System: TRAUB TX8i
Coolant System: Included
Chip Conveyor: Included
Dust Extraction System: Included
Bar Feeder: TRAUB Stamag DNH61 / 3000

Swing (Turning Diameter): 275 mm
Turning Length: 900 mm
Spindle Passage: 65 mm
Spindle Speed: 1–5,000 rpm
Spindle Power: 25.2 kW (100% load) / 30.2 kW (40% load)
Spindle Torque: 135 / 180 Nm
Spindle Bearing Diameter: 110 mm

Milling / Driven Tool Speed: 8,000 / 2,000 rpm

Rapid Traverse: X 18 m/min / Y 18 m/min / Z 30 m/min
Feed Force: X 10 kN / Y 10 kN / Z 7 kN

Tool Stations: 2x2 + 2x2
Driven Tool Stations: 2x2 + 2x2

Chuck Systems: SMW KNCS-N 170-43 (3-jaw)
Additional Chuck System: Hainbuch Spanntop
Tool Holders: Various (non-driven + driven)
