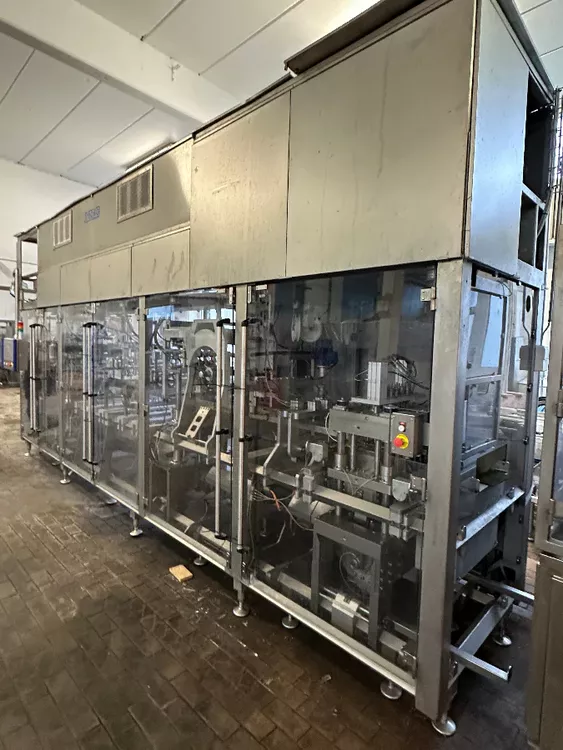

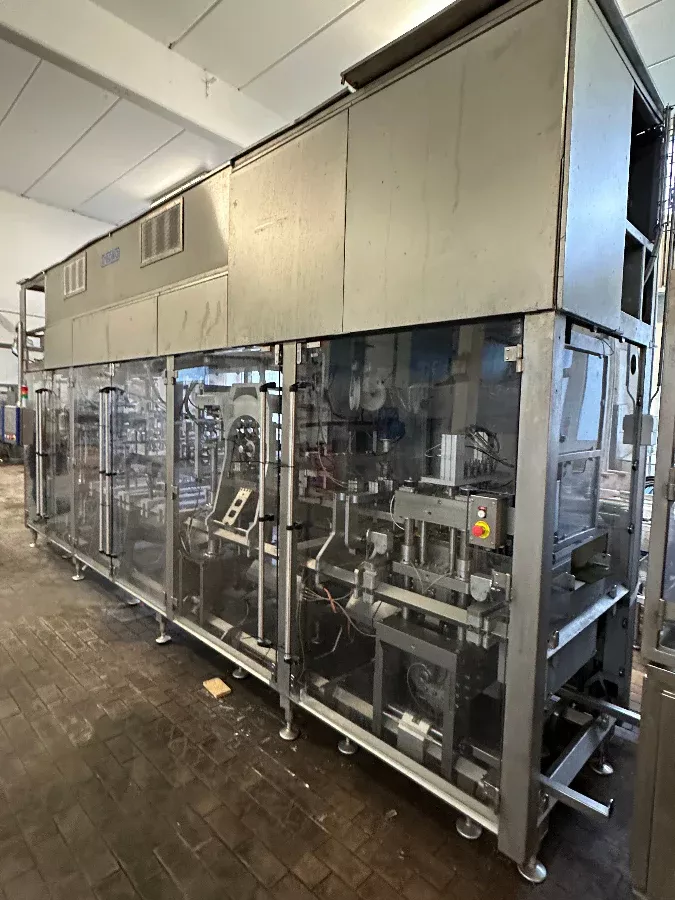

Trepko 9104-2

Form–Fill–Seal Cup Packaging Line (2016)
with T. Freemantle S09 Wrapper

Key Features
• Complete FFS system: forming, filling, sealing, cutting, and discharge
• Designed for 125 g cups (available formats: 4-pack and 8-pack)
• Fully automatic continuous operation
• Hygienic stainless-steel construction
• Suitable for chilled and ambient food applications
• Includes T. Freemantle S09 downstream wrapping/packing unit
• Comes with documentation and manuals

TREPKO 9104-2 – Technical Highlights
Cup Forming
• Thermoforming from PS/EVOH/PE roll material
• Max film width: 740 mm
• Max roll Ø: 1000 mm
• Heavy-duty forming moulds for 125 g round cups
• Multi-cavity arrangement for high throughput
Filling System
• Stainless-steel volumetric dosing block
• Multi-nozzle configuration for precise filling
• Suitable for viscous food products
• CIP-friendly design
Sealing
• Lidding material: PET/EVOH, width 240 mm
• Heated sealing station ensuring hermetic sealing
• Accurate lid positioning and temperature control
Cutting & Discharge
• Automatic multipack cutting
• Supports 4-cup and 8-cup retail packs
• Smooth discharge conveyor for integration with wrapping or case packing

T. Freemantle S09 Wrapping Unit (2016)
• For grouping and wrapping cup multipacks or blocks
• Film-fed automatic folder/wrapper
• Adjustable for various pack sizes
• Stainless steel, CE marked
• Compact and reliable downstream solution

Applications
• Stirred yoghurt
• Sour cream / dairy desserts
• Processed cheese spreads
• Margarine, butter portions, vegetable fat spreads
• Dips, pâté, paste-type products
• Any pumpable or semi-viscous food requiring thermoformed cups

Technical Information
• Trepko Model: 9104-2
• Machine No.: 3859
• Year: 2016
• Voltage: 415 V / 50 Hz
• Freemantle S09 Year: 2016
• Voltage: 240 V
