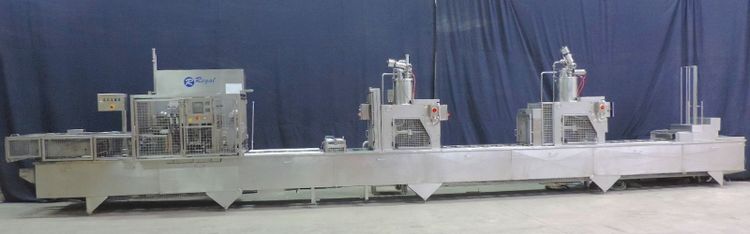

BWI, Fords, Holmatic, Trepko Ford Duckworth PR2-S Cup filling and sealing machine

Year of manufacturing : 1993, last upgrade 2004

Capacity up to 4.800 cups per hour
Dimensions product Outer 175mm
Depth max. 135mm
Power V 415, 15 A, 50 Hz
Weight Approx. 3.000 kg
Dimensions ( L x W x H ) 10 x 1.5 x 2.5 meter

2-lane pie shaped cup filling, and sealing machine.
Usable in the processed food industry,
usable for all sorts of foods on a big round plate/cup such as salads, meals, cakes, pies or other bakery- and snack products.

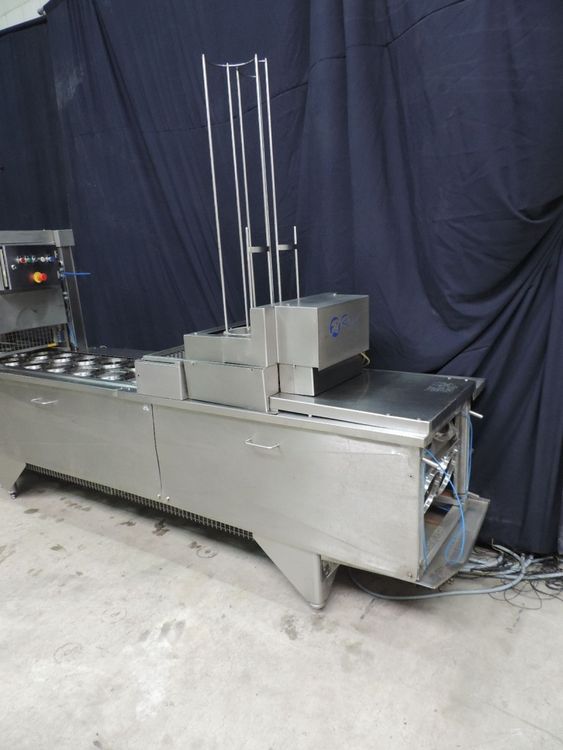

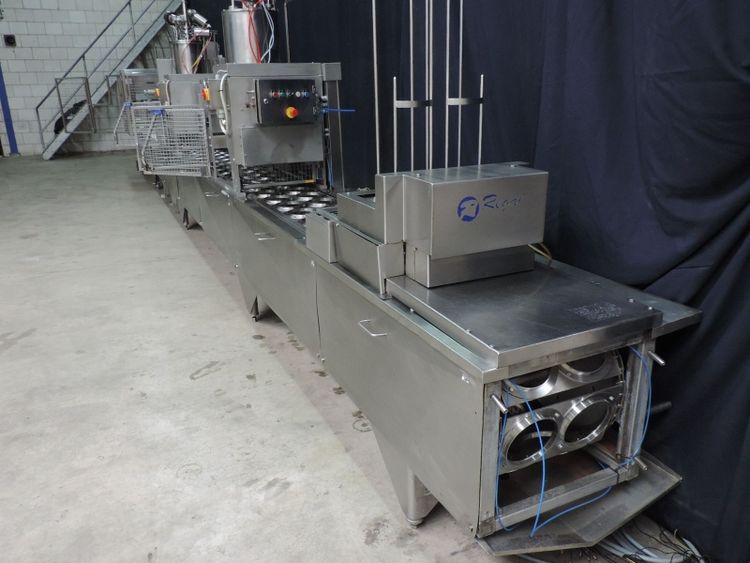

The system starts with a cup dispenser, after this station there is free space for manual additions.

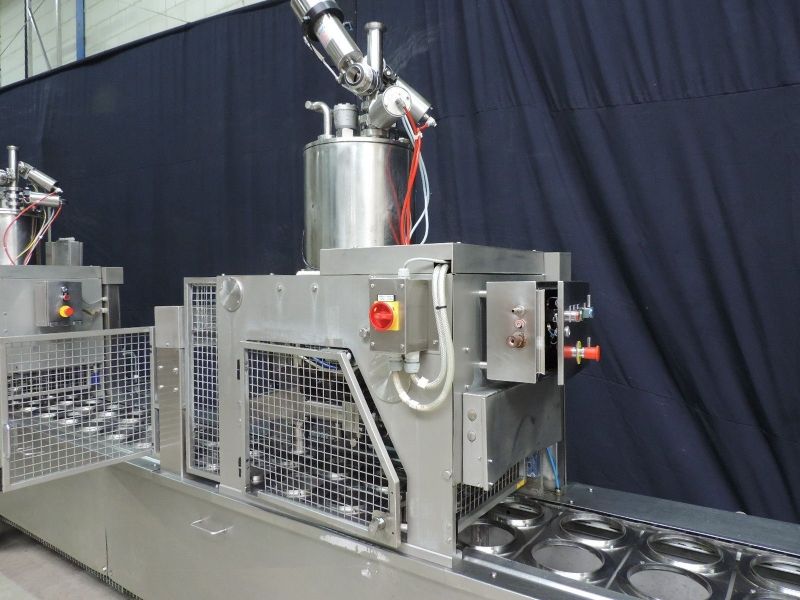

Then comes the piston doser which has a capacity up to 600 ml for pumpable products (different nozzles available).
After the doser comes a second free room for additional manual dosing of dry or any other products, for example fruits pieces.
The second piston filling station (CIP cleanable) has a capacity up to
600 ml which fills the product into the pie shaped cup.
After this second piston filling station there is a push station where the cups are lifted while hold by a vacuum suction rubber to
be pushed against a holder and are followed by the 3rd free space for manual additions.
The next step in the system is the sealing station where the cups are sealed from a reel of foil.

Including hoppers on the dosers including valves for CIP and product- and level sensors.
CIP collecting tank and CIP return pump (Make: APV, model: Puma 2-2-9, 2,2 kW).
A lot of spare parts available.
Maintenance manual, assembly drawings and electric schemes available.
