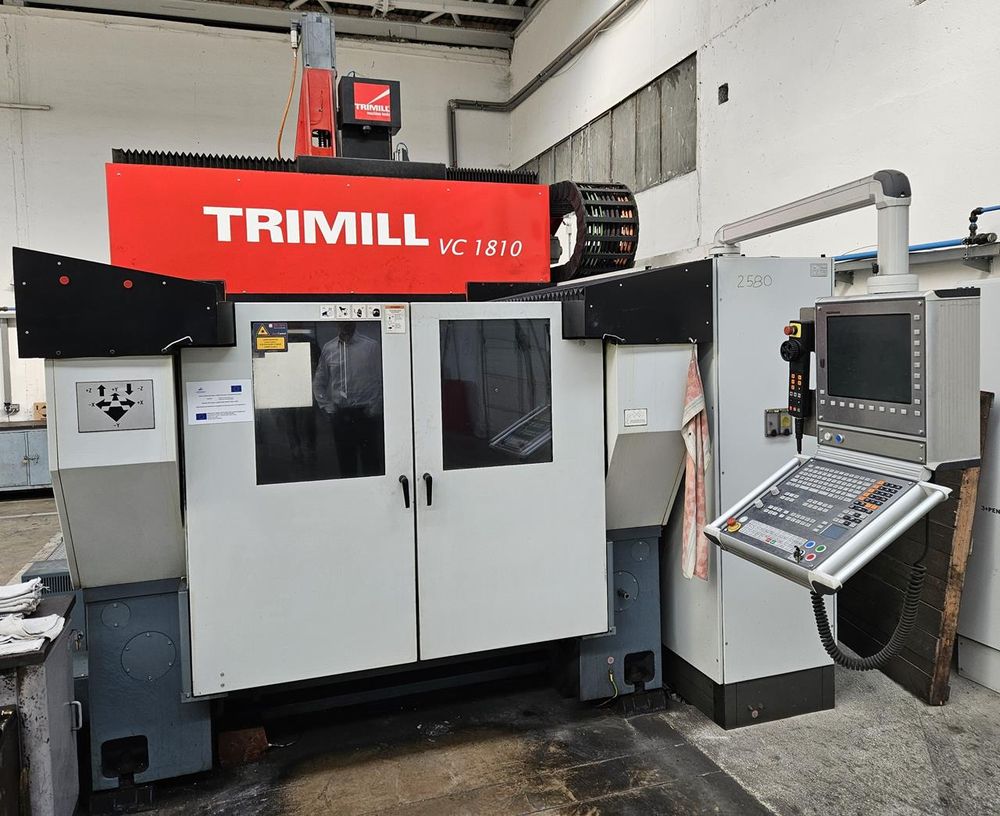

TRIMILL VC 1810 3 Axis

Control system: Heidenhain iTNC 530 HSCI
Length of the working table: 2000 mm
Width of the working table: 1370 mm
Maximum table load (evenly distributed): 10000 kg
Power of the spindle drive: 25 kW
Maximum rotary speed of the vertical spindle: 14000 1/min
X-Axis travels: 1800 mm
Y-Axis travels: 1000 mm
Z-Axis travels: 700 mm
Maximum feed rate in X-axis: 30000 mm/min
Maximum feed rate in Y-axis: 30000 mm/min
Maximum feed rate in Z-axis: 30000 mm/min
Taper: HSK – A80
Maximum number of tools: 10 pcs
Maximum tool diameter: 110/125 mm
Max. tool weight: 12 kg
Machine weight: 18000 kg
Equipment:
Tools
Thermal clamps
