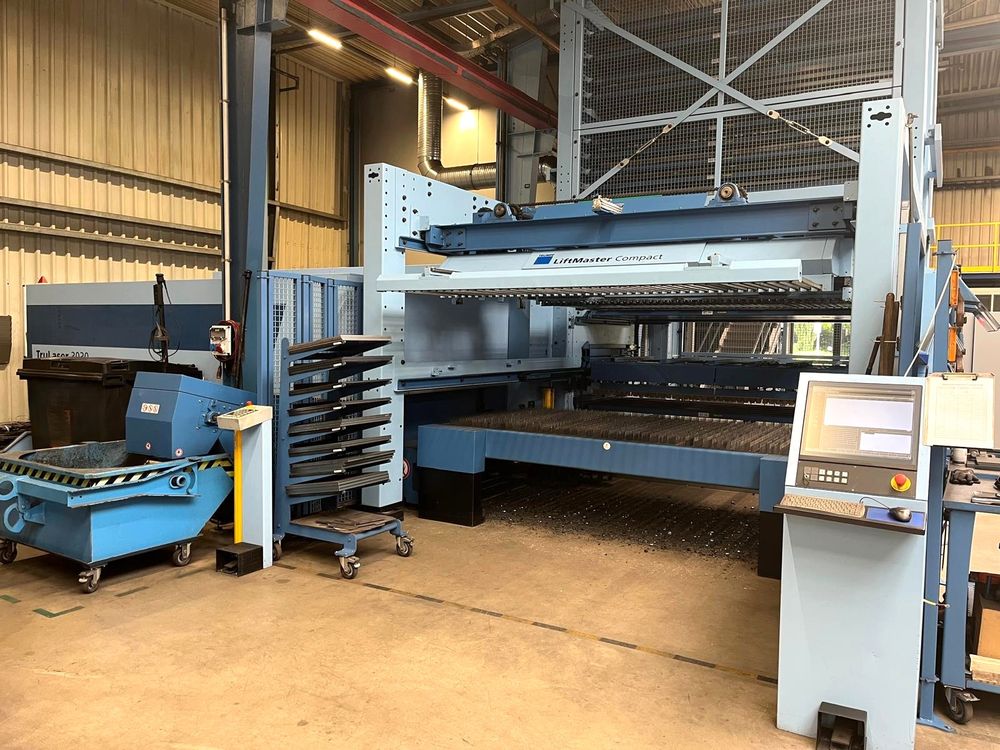

Trumpf LIFTMASTER COMPACT (AL34) Lifting

Maximum sheet size: 3000 x 1500 mm
Minimum sheet size: 1000 x 1000 mm
Maximum sheet thickness: 25 mm
Maximum sheet weight: 900 kg
Minimum part size for unloading: 150 x 150 mm
Maximum sheet thickness for rake unloading: 25 mm
Maximum sheet thickness for belt prongs: 15 mm
Basic unit type: 1530
Sheet size capacity: 3048 x 1524 mm
Loading station stack height: 90 mm
Loading station capacity: 3000 kg
Movable unloading rake with 67 mm prong spacing
Replaceable rake prongs
Finished part pallet station
Extended pallet removal station
Store interface
Peeling unit
Double sheet detection
Synchronous loader for thin sheet 0.8–2.0 mm
Slat cleaning brush
Safety devices for storage connection
Second light barrier circuit
Storage interface
TruStore 3030 storage system
Storage sheet size: 3048 x 1524 mm
Single or double tower configuration
Maximum system height: 8250 mm
Loading height: 90 mm
Loading height: 170 mm
Load capacity per pallet: 3000 kg
Start post
Column covering
Rack server with 19 inch touchscreen
Storage connection interface
Switch cabinet lighting
Lifting chain
Energy supply chain
Single tower option height: 6090 mm
LiftMaster Compact integration option
Storage compartment extension
Reduced free drive of rake frame
Input/output scissor cart integration
Front end cart version
Scissor table
Storage compartment 170 mm
Storage compartment 90 mm
Forklift-accessible pallet base for finished parts
Unpacking table for self-assembly
Unpacking table load capacity: 3000 kg
