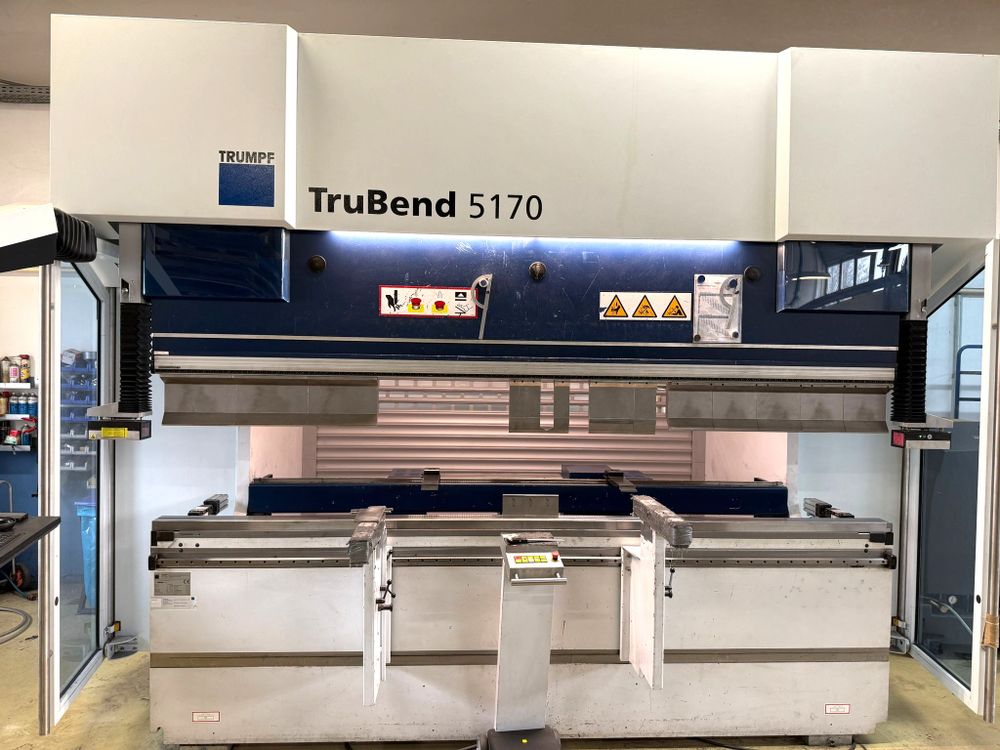

Trumpf TruBend 5170 (B03) 170 t

Press Force: 170 t
Bending Length: 3230 mm
Stroke: 445 mm
Beam Entry: 615 mm
Distance Between Side Frames: 3680 mm
Throat: 420 mm
Control: TASC 6000
TRUMPF TASC 6000
Network Connection Machine Control
Electro-Hydraulic Downstroking Drive with 4-Cylinder Technology
Modern Block Hydraulics with Control Valves Mounted on the Cylinder
Electronic Pressure Balance
Measuring System with Centered Glass Scales and Temperature Compensation
Hydraulic Oil Filled (Lifetime Lubrication)
Oil Cooler
Switch Cabinet Cooling (Air-Air Heat Exchanger)
Stable All-Steel Machine Frame
Ram Stress Relief Annealed
Spherical Ram Suspension with Ram Tilt
Backgauge System 2-Axes
2 Backgauge Fingers
4-Axis Backgauge System
Manual Upper Tool Clamping
Hydraulic Lower Tool Clamping
Hydraulic Upper Tool Clamping
Manual Crowning
CNC Crowning
Lower Tool Adjustment CNC Programmable
Safety Equipment with Emergency Stop
Manual Roller Shutter Rear
Protective Panels
Transparent Impact-Resistant Protective Guards
CE Certificate
Safety Device BendGuard (Block-Laser)
Foot Switch for Emergency Up, Down and E-STOP
Additional Foot Switch
2 Front Support Brackets
Working Area Lighting Rear
Working Area Lighting Front
