Trumpf TruBend 5230 (B23) 230 to

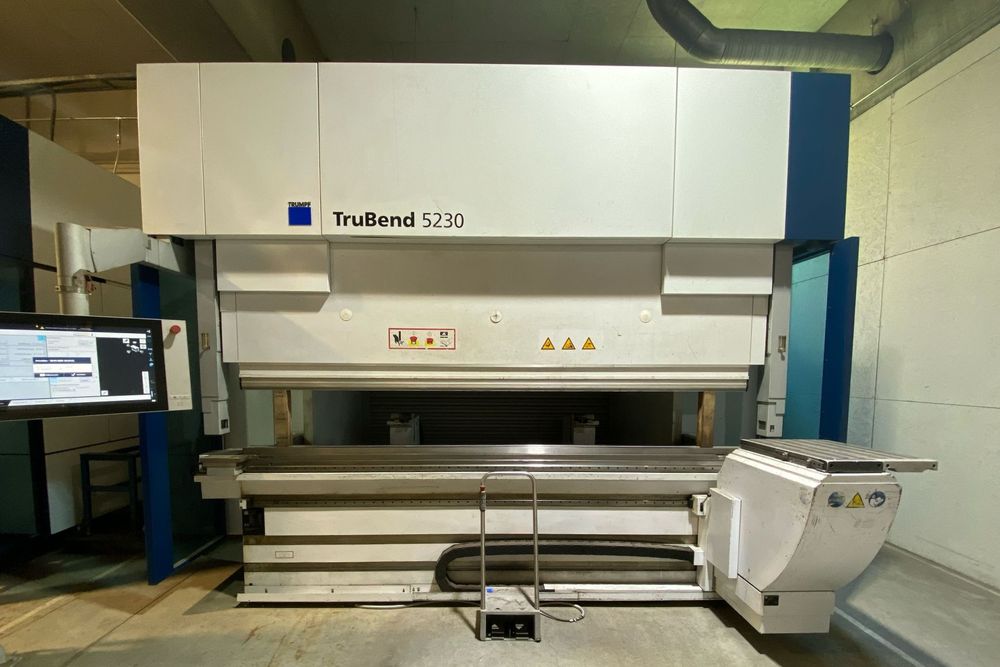

TRUMPF TruBend 5230 (B23)
Year 2016

Bending length3230 mm
Press force230 to
ControlTASC 6000
Stroke445 mm
Beam entry615 mm
Distance between side frames2690 mm
Throat420 mm


Machine
⦁ C frame
⦁ Press beam
⦁ Spherical bearing of the press beam with press beam inclination
⦁ On-Demand Servo Drive with 4-cylinder technology
⦁ Distance measurement system (Y axis) with dynamic deflection compensation
⦁ Hydraulic oil filling (life-long filling)
⦁ Switch cabinet air conditioning up to 40 °C ambient temperature

Crowning
⦁ Manual wedge crowning

Backgauge
⦁ 2-axis backgauge (X and R)
⦁ Backgauge fingers (2 pieces)

Tool clamping
⦁ Manual upper tool clamp
⦁ Hydraulic lower tool clamp

Lower tool displacement (I axis)
⦁ Pneumatic I axis

Control
⦁ Touchpoint TruBend machine control
⦁ Integrated TRUMPF technology data
⦁ Support arm with height adjustment
⦁ Network capability

Operation ergonomics
⦁ Foot switch
⦁ Communications rail
⦁ MobileControl
⦁ Mobile Control Pro

Safety
⦁ Standard safety device
⦁ Sliding doors at the sides
⦁ Roller gate at the rear
⦁ BendGuard
⦁ CE marking

Additional Equipment

Crowning
⦁ CNC-controlled wedge crowning

Backgauge
⦁ 6-axis backgauge (X1, X2, R1, R2, Z1, Z2)

Tool clamping
⦁ Hydraulic upper tool clamp

Lower tool displacement (I axis)
⦁ CNC-controlled I axis

Angle assistants
⦁ ACB Laser – Automatically Controlled Bending

Operation ergonomics
⦁ Tool Indicator

Material handling
⦁ Bending aid first arm with plastic support
