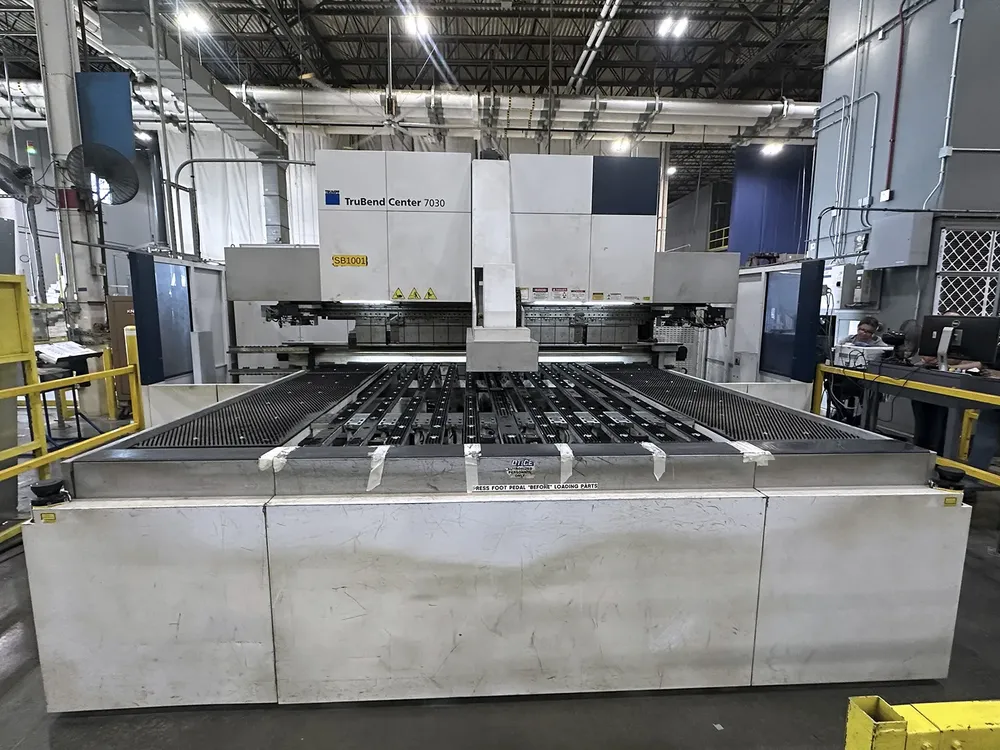

Trumpf TRUBEND 7030 Trumpf CNC control

Max bending length 122.95 in (3123 mm)
Min bending length 7.874 in (200 mm)
Min sheet thickness 0.02 in (0.5 mm)
Max mild steel thickness 0.118 in (3 mm)
Max stainless steel thickness 0.087 in (2.2 mm)
Max aluminum thickness 0.157 in (4 mm)
Min bending depth (standard tool) 5.7 in (145 mm)
Min bending depth (ENW) 1.575 in (40 mm)
Max box height 8.661 in (220 mm)
Max component size 122.84 x 59 in (3120 x 1500 mm)
Max component diagonal 136.22 in (3460 mm)
Weight 70,000 lbs (31,600 kg)

ENW tooling set included
ABC laser automatically controlled bending system
2-axis manipulator with vacuum modules
Built-in crowning system
Loading grippers for blank positioning
Automatic rotary part manipulator
Optical angle assistance camera system
ToolMaster Bend automatic retooling
22-inch touchscreen control
Teleservice via internet
Laterally pivoting safety doors
Light barriers
Emergency shutdown system
3-surface suction modules set
ENW extra blank holders function
