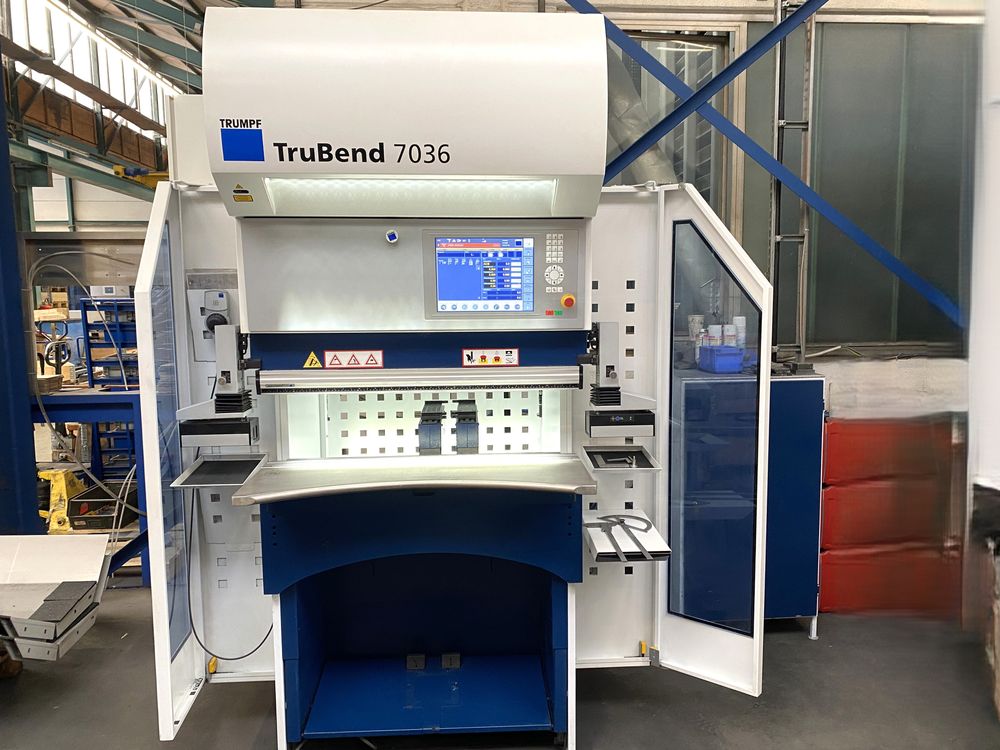

Trumpf TruBend 7036 (B19) 36 to

Press force 36 to
Bending length 1020 mm
Beam entry 295 mm
Distance between side frames 932 mm
Throat 150 mm

Electro-mechanic direct drive (torque drive)
Stress-relief annealed ram optimized for low deformation
Inductive linear measurement system with temperature compensation
Switch cabinet air conditioning
Stable machine frame for standing and sitting operation
Ergonomic machine design

Backgauge system 3-axis X1, R1, Z1
Optional 6-axis backgauge system

Upper tool system manual, non-hardened, self-centering for vertical tool change
Lower tool clamping manual hardened

TRUMPF TASC 6000 control system
Windows XPe operating system
Pentium M 1.1 GHz processor
1 GB RAM
15 inch touchscreen
Network compatible
Shop floor numerical programming

Pivotable safety side doors
Rear protective guard
Side protective guard
2-button foot switch for standing and sitting operation

Variant programming for profiles
Setup optimization and production planning
Mobile hand wheel

Measuring tool drawer fully equipped
Bending line laser option
OCB operator controlled bending

Ergonomic package
Supporting table comfort
Comfort footrest
LED work area lighting front
LED work area lighting rear
Swivel-mounted operating unit
2 support brackets
Sitting and standing aid
2 rack units
2 document racks

Productivity Plus package
Automatic tool clamps
BendGuard with block laser
Graphic workshop programming
