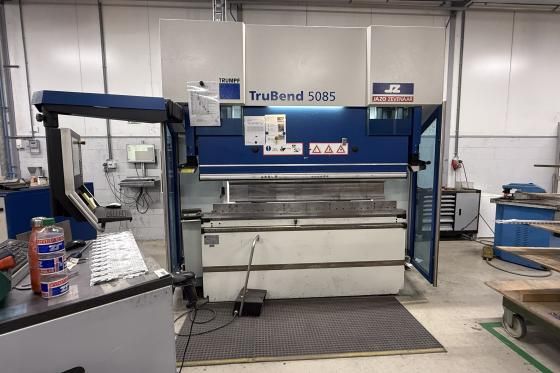

Trumpf TrueBend 5085 85t

Ref : 2747015-3-GO

Condition : Used

Manufacturer : Trumpf

Model : TrueBend 5085

Pressure : 85t

Year(s) : 2007

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Pressing force 85t
Max. bending length 2210mm
Distance between columns 1750mm
Beam stroke 385mm
Dis. beam - table 505mm
Troth beam 420mm
Approach speed 220mm/min
Working speed 25mm/min
Return speed 220mm/min
Adjustment X-axis back gauge 0–1000mm
Control TASC 6000
6 axis back gauge X1/X2/R1/R2/Z1/Z2
Wila crowning
Wila New Standard II tool clamping
4 cylinder construction 2 left / 2 right
Lazer safe protection
Closed door backside machine
First owner machine fully Trumpf serviced
Length 3020mm
Width 1800mm
Height 2375mm
Weight 7800kg
