Trumpf TRULASER 3030 CNC CONTROL

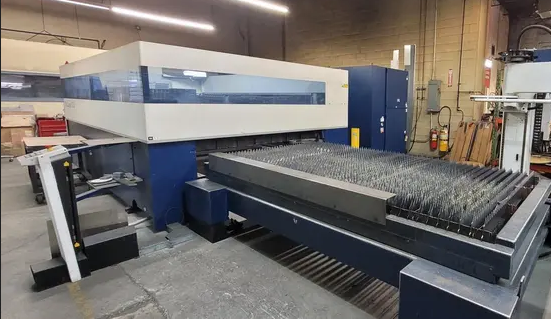

TRUMPF TRULASER 3030
2013

Laser type: CO₂ (TruFlow 4000)
Laser power: 4,000 W
X-axis travel: 118" (3,000 mm)
Y-axis travel: 59" (1,500 mm)
Z-axis travel: 4.5" (115 mm)
Max mild steel thickness: 20 mm
Max stainless steel thickness: 15 mm
Max aluminum thickness: 10 mm
Max copper thickness: 8 mm
Max brass thickness: 8 mm
Max workpiece weight per pallet: 1,984 lbs (900 kg)
Max simultaneous axis speed (X + Y): 140 m/min (4,600 in/min)
Max single axis speed: 85 m/min (3,346 in/min)
Positioning accuracy: ±0.1 mm/m
Repeatability: ±0.03 mm
Machine dimensions: 354" x 197" x 87"
Automatic pallet changer
Touch panel numerical control
Programmable gas selection (O₂, N₂, Air)
Supports cutting ferrous and non-ferrous materials
Trumpf Loadmaster included
