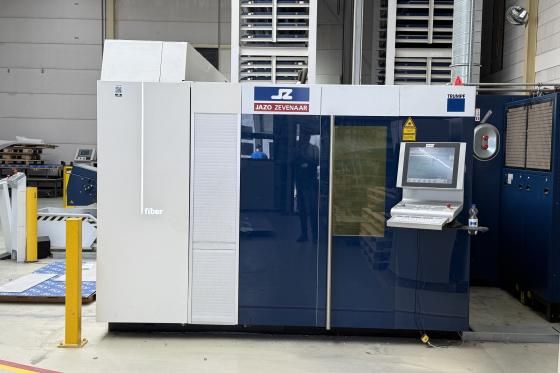

Trumpf TruLaser 3030 CNC CONTROL

Working area X axis 3000 mm
Working area Y axis 1500 mm
Working area Z axis 115 mm
Table length 3000 mm
Table width 1500 mm
Length 9000 mm
Width 5000 mm
Height 2200 mm
Weight 7650 kg

Features / Accessories:
TrueTops control
High speed cutting with precision
Tower and Sheetmaster not included
Low operation cost
Compact footprint
Change table (Liftmaster and tower not included)
Possible to cut reflective material (copper, brass)
Mild steel cutting capacity 20 mm
Stainless cutting capacity 15 mm
Aluminium cutting capacity 12 mm
Copper cutting capacity 6 mm
Brass cutting capacity 6 mm
User-friendly interface with graphical programming
Automatic nesting
Cutting parameter libraries
Real-time diagnostics
Interfaces with TRUMPF automation modules
Networking system integration
Real-time control of laser, motion, and auxiliary systems
Comparison between fiber and CO₂ laser systems
Fiber wavelength 1.06 µm
CO₂ wavelength 10.6 µm
Fiber faster in thin sheet
Fiber 50% more energy efficient
No mirrors or laser gas required for fiber
Less maintenance with fiber system
