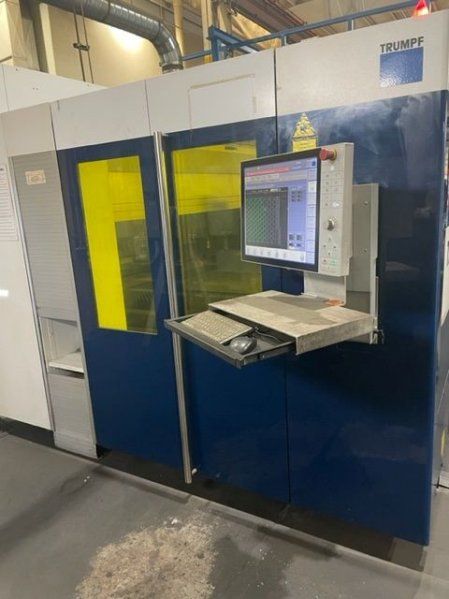

Trumpf TRULASER 3030 FIBER LASER CNC CONTROL

Working range: 120" x 60"
Maximum simultaneous axis speed: 170 m/min (6693 IPM)
Machine weight: 8000 kg (17637 lbs)
Main supply: 460 V / 60 Hz
Connected load: 52.0 kVA
Control voltage: 24 VDC
Full load current: 66 A
AMP rating of largest motor: 8.0 A
Air inlet pressure (max): 174 PSI
Inlet pressure N2 (max): 479 PSI
Inlet pressure O2 (max): 304 PSI
Maximum laser power: 6000 W
Max thickness mild steel: 25 mm (1")
Max thickness stainless steel: 25 mm (1")
Max thickness aluminum: 25 mm (1")
Max thickness copper: 10 mm (.394")
Max thickness brass: 10 mm (.394")

Full enclosure safety system
Automatic pallet changer with safety light barrier
Universal single cutting head
ControlLine automatic height regulation
PierceLine piercing monitoring and regulation
FocusLine fully programmable focus
NitrolLine high pressure cutting package
Oil spray device
CoolLine
Nozzle changer
Integrated camera
LMC prep
TruDisk 6001 with BrightLine Fiber
2nd door window on left side
Sinumerik 840D SL control
Integrated technology data
Automatic shut-down device
Production plan
Programmable cutting gas pressure
SprintLine
ContourLine
Microweld
FastLine
FlyLine
AdjustLine
Teleservice
Diagnostic functions
Dust collector
Chiller
