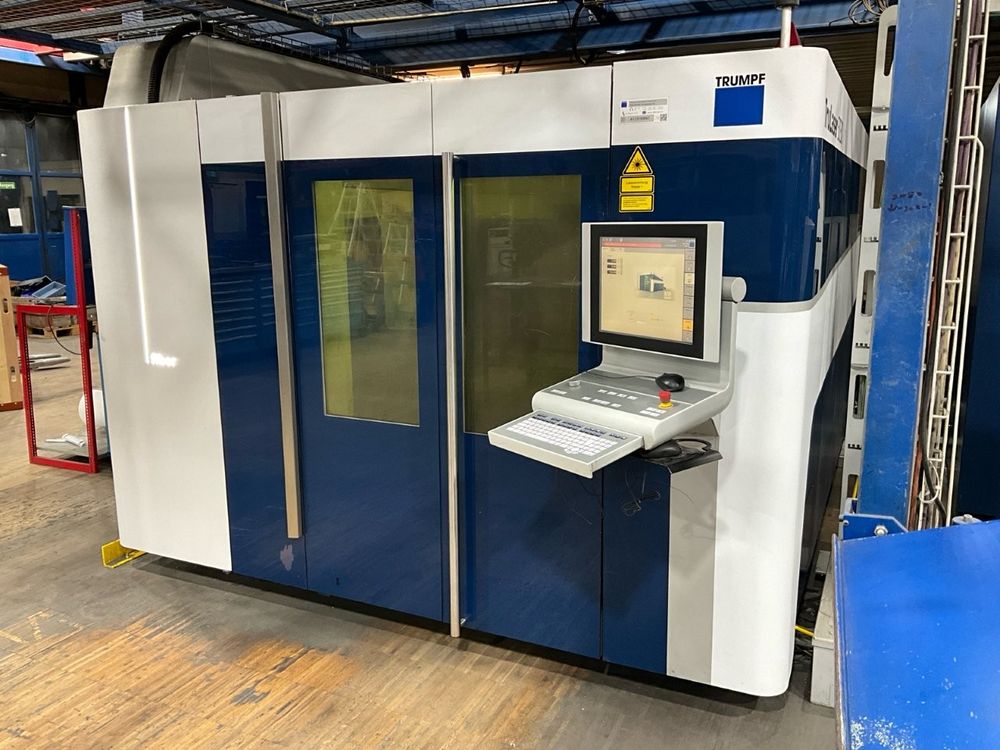

Trumpf TRULASER 5030 FIBER (L56) Siemens Sinumerik 840D SL

Working area X: 3000 mm
Working area Y: 1500 mm
Working area Z: 115 mm
Maximum cutting speed: 265 m/min
Maximum sheet thickness steel: 25 mm
Maximum sheet thickness stainless steel: 25 mm
Maximum sheet thickness aluminum: 25 mm
Laser power: 5000 W

Control: Siemens Sinumerik 840D SL
17" touch panel
Shop floor programming
Integrated technology database
Automatic shutdown
Programmable cutting gas pressure
FastLine
FlyLine
AdjustLine
Integrated e-shop

Solid-state laser TruDisk 3001
Laser power control
Pump diode excitation
Fiber optic beam delivery
Laser chiller unit water-air
Positioning laser diode

Universal cutting head
Adaptive lens system
Protection glass
Protection glass monitoring
ControlLine height control
Sheet edge detection

Closed machine frame
Integrated electrical cabinet
Automatic pallet changer longitudinal
Torque drive with linear drives
Integrated cabinet lighting
Working area lighting
Longitudinal conveyor
Spray device
PierceLine
FocusLine
NitroLine
PlasmaLine
Automatic nozzle cleaning

RJ45 network interface
USB interface

CE compliant
Light barriers
Multi-chamber extraction system
Compact dust extractor
Full enclosure with certified window
Electrical lift-up roof

Nozzle changer
BrightLine Fiber
Left-side door window
Integrated Full HD process camera
Transverse conveyor with tipping container

LiftMaster R automation
Peeling device
Sheet thickness measuring device
Exchangeable prongs
