Trumpf TRULASER 5030 FIBER (L68) Siemens Sinumerik 840 D SL

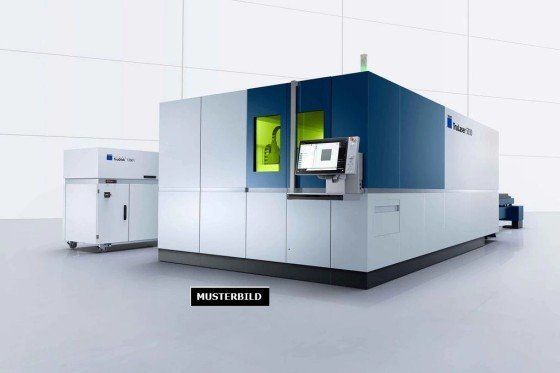

TRUMPF TRULASER 5030 FIBER (L68)

Working area 3000 x 1500 x 115 mm
Laser rated output 6000 Watt
Control Siemens Sinumerik 840 D SL
Max sheet thickness (steel) 25 mm
Max sheet thickness (stainless steel) 20 mm
Max sheet thickness (aluminum) 20 mm
Max speed 265 m/min
Closed machine design
Integrated cabinet with roller shutter
Automatic pallet changer (longitudinal direction)
Torque drive with direct linear drives
Enclosed beam delivery via laser light cable
Chiller included
Integrated electrical cabinets with internal lighting
Conveyor belt for small parts and slugs
Work area lighting
Positioning laser diode
Spray device
FocusLine
NitroLine
PlasmaLine
Integrated solid-state laser TruDisk 3001
Single laser output
Water-air laser chiller
Pump diode laser stimulation
Laser power control
Universal cutting head
Single cutting head strategy
Safety glass to prevent lens contamination
Safety glass monitoring
ControlLine automatic height control
Sheet edge detection
Easy shop floor programming
Fast reproduction
19” touchscreen
Integrated technology data
Brass cutting package
Copper cutting package
Automatic shutdown
Programmable cutting gas pressure
Multi-sheet processing
ContourLine
Microweld
FastLine
FlyLine
AdjustLine
Condition Guide
USB interface
Central Link
RJ45 network connection
CE certification
Light barriers
Multi-chamber exhaust system
Compact dust extractor
Machine enclosure with certified window (right door)
External solid-state laser TruDisk 6001
BrightLine fiber
Fusion cut performance package
Highspeed cutting package
Smart Beam Control
Nozzle changer
Nozzle inspection
CoolLine
DetectLine precision edge sensing
Extended machine sensor system
Machine status lamp
Left-side door window
Video camera for process monitoring
Drop&Cut
Wireless Operation Point
MDA interface
