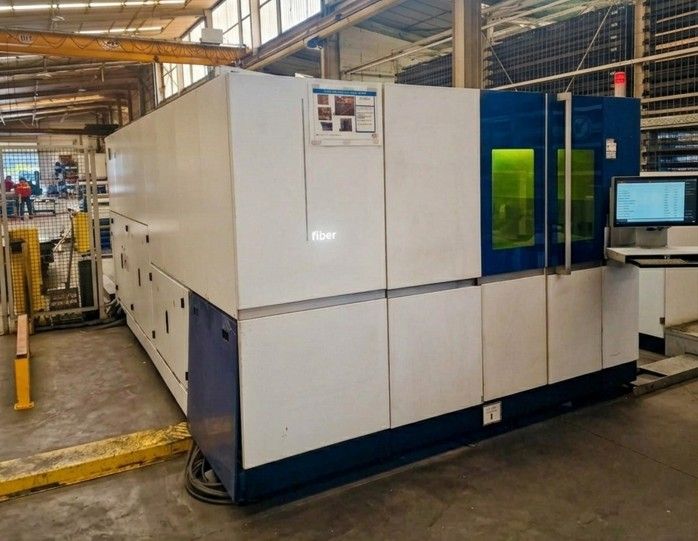

Trumpf TruLaser 5030 fiber (L76) Siemens Sinumerik 840D SL

Fiber laser cutting machine
X-axis travel: 3000 mm
Y-axis travel: 1500 mm
Z-axis travel: 115 mm
Max speed: 280 m/min

Control system: Siemens Sinumerik 840D SL
Laser power: 10000 W

Max sheet thickness (steel): 30 mm
Max sheet thickness (stainless steel): 40 mm
Max sheet thickness (aluminum): 30 mm

Working area: 3000 × 1500 mm

Box frame construction
Process cooler for machine and laser (water/air)
Longitudinal conveyor belt
Work area illumination
Pilot laser system
Spraying equipment
Automatic nozzle cleaning system
Gantry drive with linear direct drives
Integrated electrical cabinets
Closed beam guidance via laser light cable (LLK)
Machine status light
Machine environment temperature range: +5°C to 35°C

Single cutting head strategy
Protective glass system
Online condition monitoring of protective glass
Universal cutting unit with adaptive lens system

Functions:
AdjustLine
ControlLine
FastLine
FlyLine
NitroLine
PierceLine
BrightLine fiber
FocusLine
Fusion cut performance package
High-speed cutting package
Copper cutting package
Brass cutting package

Data interfaces:
USB
RJ45 network
Central Link
Online Update Manager

Safety features:
CE marking
Light barriers
Multi-chamber dust extraction system
Enclosed protective housing
Certified door viewing panels

Laser system: TruDisk 10001 solid-state laser
Smart Beam Control system

Nozzle changer: 21 positions
Active Speed Control system
High-speed eco cutting process
Automated production and remote support functions
