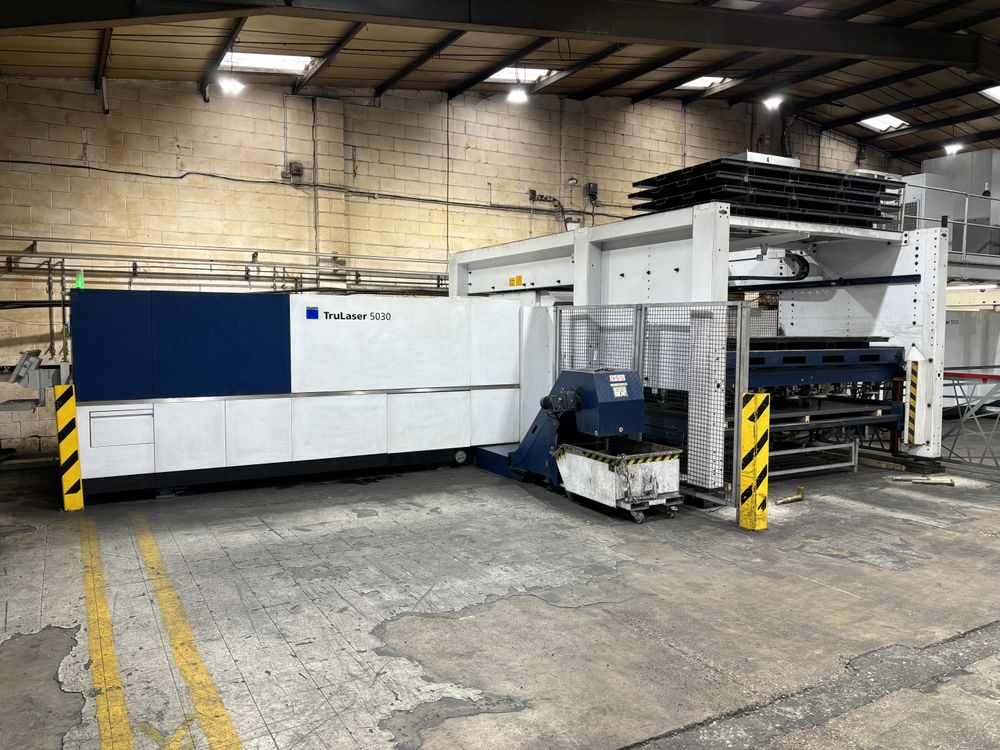

Trumpf TRULASER 5030 L76 LMC Sinumerik 840D SL

Working area: 3000 x 1500 mm
Laser rated output: 12000 W
Control: Sinumerik 840D SL
Maximum sheet thickness (steel): 50 mm
Maximum sheet thickness (stainless steel): 50 mm
Maximum sheet thickness (aluminum): 40 mm
Maximum speed: 140 m/min
Box frame construction
Longitudinal conveyor belt
Gantry drive with linear direct drives
Process cooler (water/air)
Work area illumination
Pilot laser
Spraying equipment
Automatic nozzle cleaning
Integrated electrical cabinets
Closed beam guidance via laser light cable
Machine status light
Laser excitation by pump diodes
Laser power control
Single cutting head strategy
Protective glass with online condition check
Dynamic Focus Control
Automatic nozzle centering
Fully adaptive lens system
AdjustLine function
BrightLine Fiber function
ControlLine function
FastLine function
FlyLine function
FocusLine function
NitroLine function
PierceLine function
Fusion cut performance package
Highspeed cutting package
Copper cutting package
Brass cutting package
Ergonomic control panel with 21.5" touchscreen
Integrated technology data
Auto-shutdown function
Programmable cutting gas/pressure selection
Microweld function
Remote support interface
Production plan management
Multi-sheet processing
Condition Guide
Cutting Guide
CE marking
Light barriers
Multi-chamber compact dust extractor
Electrical rolling roof
Enclosed protective housing with viewing panels
USB interface
RJ45 network interface
Central Link connection
Online Update Manager
Compact dust extractor
Slats made of mild steel (67 mm)
Automatic pallet changer (longitudinal direction)
Operating temperature range: +5°C to 35/45°C
External solid-state laser TruDisk 12001
Smart Beam Control
Prefilter for gases
Smart Nozzle Automation with nozzle changer and inspection
Highspeed Eco cutting package
Cutting package for thick sheets
Wide transverse conveyor belt with tipping container
Cleaning brush
Slag cart under pallet changer
2 x 30 L disposal units for dust extractor
Mezzanine installation version
LiftMaster Compact 1530 (AL 34) preparation
