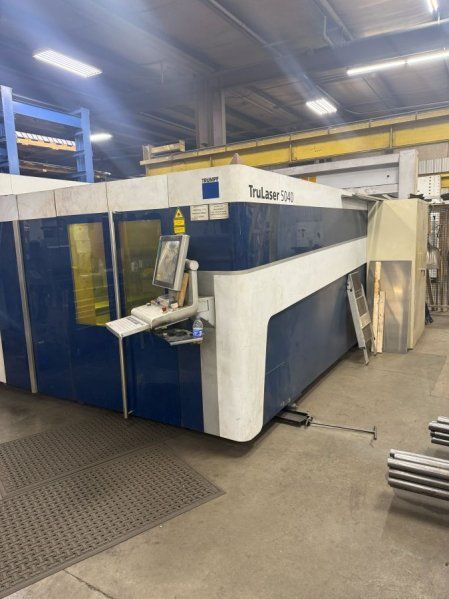

Trumpf TRULASER 5040 Fiber Laser CNC Control: Siemens
Ref :
2765917-3-MT
Condition :
Used
Manufacturer :
Trumpf
Model :
TRULASER 5040 Fiber Laser
Controller :
CNC Control: Siemens
Year(s) :
2014
Quantity :
1
Location :
Seller or machines location:
AMERICA North (USA-Canada-Mexico)
AMERICA North (USA-Canada-Mexico)
X Axis Travel: 157"
Y Axis Travel: 78"
Z Axis Travel: 4.5"
Maximum Axial Speed (Simultaneous): 10,443 IPM
Control Type: CNC
Control: Siemens
Smallest Programmable Increment: 0.0004"
Positioning Accuracy: 0.004"
Repeatability: 0.001"
Laser Resonator: TruDisk 5001
Laser Power: 5000 W
Maximum Mild Steel Thickness: 25 mm
Maximum Stainless Steel Thickness: 20 mm
Maximum Aluminum Thickness: 20 mm
Maximum Brass Thickness: 10 mm
Maximum Copper Thickness: 10 mm
Features / Equipment:
Fiber laser cutting system
TruDisk resonator
High-speed simultaneous axis motion
CNC control system
