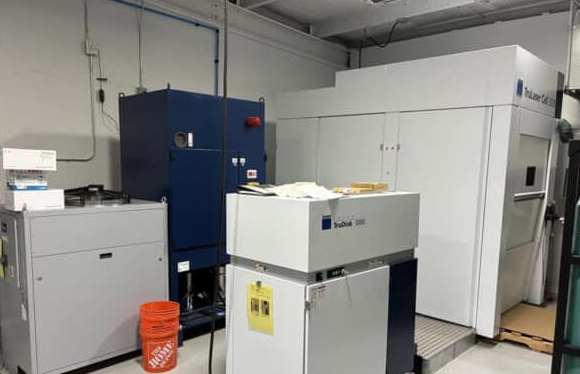

Trumpf TRULASER CELL 3000 (L34) CNC Control

X Axis Travel: 800 mm
Y Axis Travel: 600 mm
Z Axis Travel: 400 mm
B Axis Maximum Speed: 120 rpm
B Axis Maximum Acceleration: 130 rad/s²

Touchpoint HMI
21.5 in Operating Panel
Teach Panel
Mineral Cast Machine Body
Integrated Water-Air Cooler
Integrated Electrical Cabinet
Network Connection for Remote Support
Laser Power: 3000 W
Maximum Axis Speed X: 50 m/min
Maximum Axis Speed Y: 50 m/min
Maximum Axis Speed Z: 50 m/min
Maximum Simultaneous Axis Speed: 85 m/min
Positioning Accuracy X/Y/Z: 0.015 mm
Positioning Accuracy B Axis: 0.02°
Rotary Axis C180-2
3 Jaw Chuck: 1330 mm
Machine Weight: 13,228 lbs
