Trumpf TRULASER TUBE 7000 CNC CONTROL

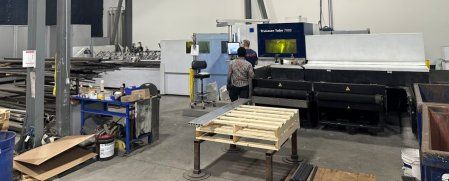

TRUMPF TRULASER TUBE 7000
Year: 2019

Max. Outer Diameter Round Tube: 254 mm (10")
Max. Side Length Rectangular Profile: 220 mm (8.66")
Max. Outer Circle Rectangular Profile: 254 mm (10")
Max. Raw Length Automatic Loading (Loadmaster Tube 6.5 M): 6500 mm (255.9")
Max. Raw Length Automatic Loading (Loadmaster Tube 9.2 M): 9200 mm (362.2")
Max. Raw Length Automatic Loading (Loadmaster Tube 12.5 M): 12500 mm (492.1")
Finished Part Length Unloading Unit 4.5 M: 4500 mm (177.2")
Finished Part Length Unloading Unit 4.5 M + 1.5 M: 6000 mm (236.2")
Finished Part Length Unloading Unit 6.5 M: 6500 mm (255.9")
Finished Part Length Unloading Unit 6.5 M + 1.5 M: 8000 mm (315")
Max. Workpiece Path Weight (standard/optional): 40 kg/m
Max. Raw Material Weight Automatic Loading (Loadmaster Tube 6.5 M): 260 kg (573 lbs)
Max. Raw Material Weight Automatic Loading (Loadmaster Tube 9.2 M): 368 kg (811 lbs)
Max. Raw Material Weight Automatic Loading (Loadmaster Tube 12.5 M): 368 kg (811 lbs)
Laser Type: TruDisk 4001
Laser Power: 4000 Watts
Max. Sheet Thickness Mild Steel: 10 mm (.39")
Max. Sheet Thickness Stainless Steel: 6 mm (.24")
Max. Sheet Thickness Aluminum: 6 mm (.24")
Max. Sheet Thickness Brass: 5 mm (.20")
Average Power Consumption in Production: 10 kW
30' Load Station
20' Offload Station
Tapping
Drilling
Bevel Cutting Head
Seam Camera
4kW TruDisk Resonator
Chiller
Dust Collector
