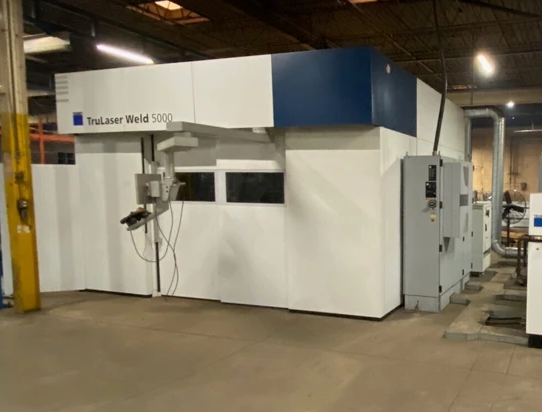

Trumpf TRULASER WELD 5000 FIBER CNC CONTROL

Laser capacity 4000 W
Rotate & tilt positioner maximum part width 78.75 in
Rotate & tilt positioner maximum part height 27.55 in
Rotate & tilt positioner maximum part depth 39.37 in
Rotate & tilt positioner maximum loading 880 lbs
Rotary table maximum work area 63 x 31.5 x 47.2 in
Rotary table maximum loading per side 550 lbs
Rotational changer maximum work area 78 x 39 x 43.3 in
Rotational changer maximum loading per side 1650 lbs
Turnover positioner maximum part size 157 x 59 x 39 in
Turnover positioner maximum loading 2200 lbs
Robot number of axes 6
Robot repeatability +/- 0.0019 in
KUKA KR30 HA robot
Support arm for operating panel
Laser light cable
Magnetic coupling
Axis alignment
Process gas argon
Supply port access gas
TruDisk 4000
Water-air-cooled chiller
Enclosure with power door
Vacuum unit
FusionLine
Rotary module for shield gas programmable
TeachLine
Automatic rotary changer
Demmeler mounting frame for fixtures
