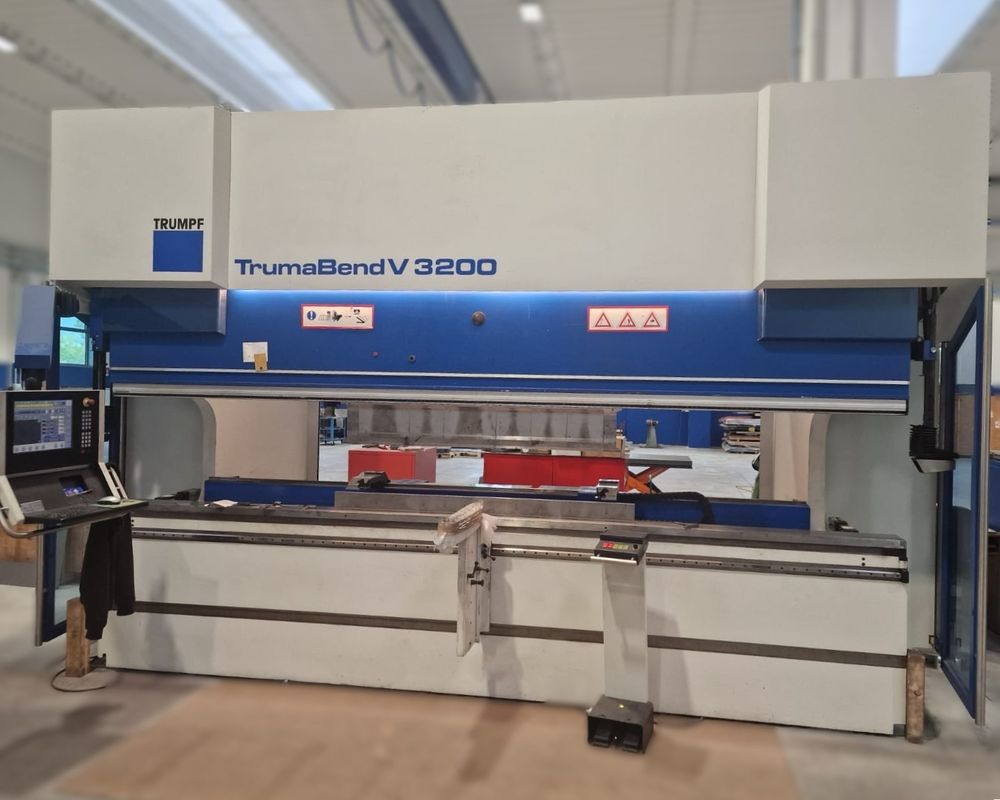

Trumpf TrumaBend V 3200 320 tons

TRUMPF TrumaBend V 3200
2006

Bending length 4420 mm
Press force 320 tons
Control TASC 6000
Stroke 445 mm
Beam entry 615 mm
Distance between side frames 3680 mm
Throat 410 mm
Stable welded all-steel machine frame
Ram (press beam) highly resistant to torsional forces
Electrohydraulic downstroke drive via proportional valves
Modern block hydraulics
CNC backgauge with rack-and-pinion drive for X and R axis
Safe front adjustment of stop fingers
Upper tool clamping system "New standard clamping II", manual
Lower tool holder for EV dies, hydraulic clamping
Programmable shifting (2 positions)
Integrated side doors and automatic back roll-top for safety
Switch cabinet air-conditioning
Network compatible
Manual crowning, centrically adjustable

Additional equipment:
5 axis backgauge system
Hydraulic upper tool clamping
CNC crowning
BendGuard safety device
Additional foot switch
2 x front support brackets
Preparation ACB
