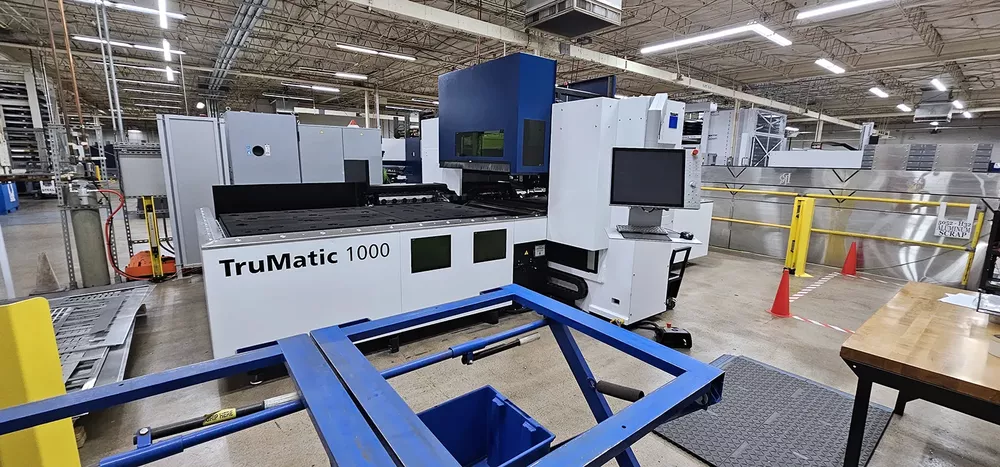

Trumpf Trumatic 1000 punch / laser CNC control

Max wattage 3000 fiber
Tonnage 18 tons
Sheet size 4' x 8'
Max sheet thickness 0.25"
Maximum sheet weight 500 lbs
Punch capacity 0.625" max diameter in 0.25" thick stainless steel
X-axis 118 in/s²
Y-axis 118 in/s²
Simultaneous X+Y 3940 ipm
Stainless steel 0.25"
C-axis rotation 180 rpm
Stroke marking 1000 spm
Stroke 0.40" pitch 600 spm
Max clearance for workpiece 1.37"
Max height 1" (forming)

Fiber power supply
Chip conveyor
Enclosure
Table
Laser max acceleration
Laser TruDisk fiber
Punch head electro-mechanical
Punch speeds
