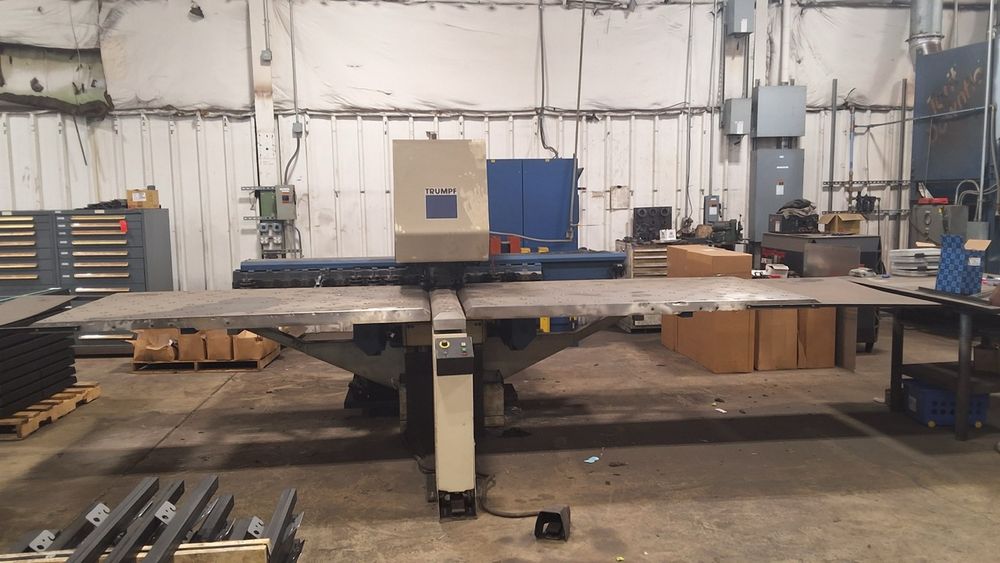

Trumpf TRUMATIC 200 20 ton

Punching force: 20 ton
Maximum sheet size: 49.2" × 98.4"
Maximum sheet thickness: 0.252" (6.4 mm)
Maximum punch diameter: 3" (76.2 mm)
X-axis travel: 81.5" (2,070 mm)
Y-axis travel: 50.4" (1,280 mm)
Maximum workpiece weight: 330 lb (150 kg)
Positioning speed X-axis: 262 IPM (80 m/min)
Positioning speed Y-axis: 180 IPM (55 m/min)
Simultaneous positioning speed: 318 IPM (97 m/min)
Stroke rate: 500 hits/min
Control: Bosch Trumagraph CC220S CNC
Tool capacity: 15 automatic stations
Electrical: 460 V, 3 phase, 14 kVA
Machine dimensions: 19.7' × 18.4' × 6.8'
Machine weight: Approx. 18,000 lb
15-station automatic tool changer
Automatic clamp repositioning
Programmable C-axis tool rotation
Hydraulic punching system
Safety light curtains
