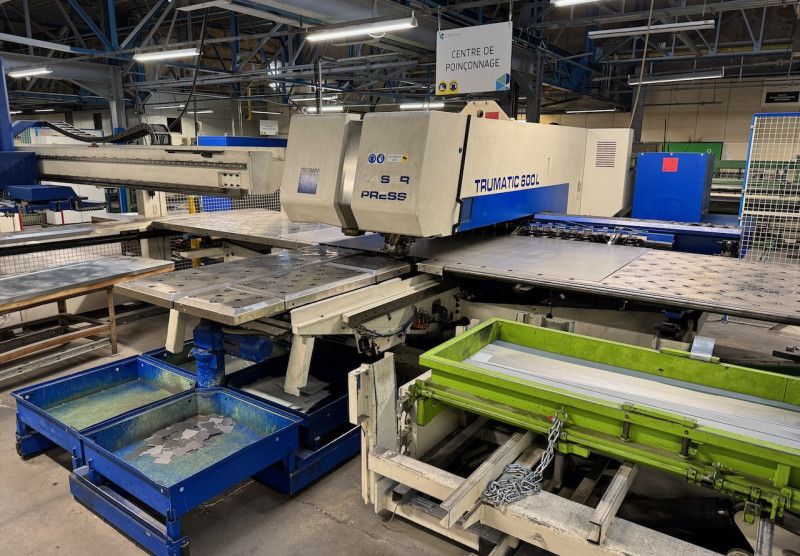

Trumpf TRUMATIC 600 L-1600 220 kN

Press force 220 kN
Combined punching/laser working area 2585 x 1650 mm
Punching working area 3085 x 1740 mm
Laser working area 3085 x 1650 mm
Maximum sheet thickness 8 mm
Steel cutting capacity 8 mm
Stainless steel cutting capacity 6 mm
Aluminum cutting capacity 4 mm
Laser power 140–2700 W
Active holding force 4.5–20 kN
Maximum workpiece weight 230 kg
X-axis positioning speed 90 m/min
Y-axis positioning speed 60 m/min
Simultaneous X/Y speed 108 m/min
C-axis speed 60 rpm
Threading speed 180 rpm
Punching rate 900 strokes/min
Tool rotation speed 2800 rpm
Linear tool magazine 18 stations
Tool change time 1.5–5 s
Positioning accuracy ±0.10 mm
Repeatability ±0.03 mm
Programmable part slides 500 x 500 mm
TRUMPF CNC control Siemens Sinumerik 840D
Automatic sheet handling system TRUMALIFT SHEETMASTER 1606
