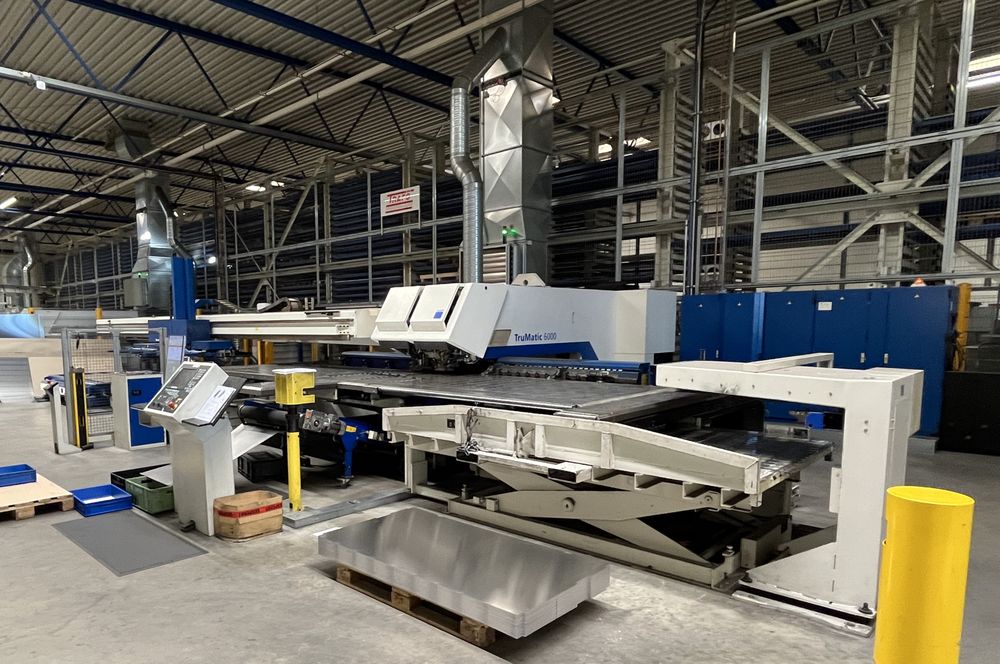

Trumpf TruMatic 6000-1600 (K01) (FMC) 22 T

Working area: 2585 × 1650 mm
Laser rated output: 3200 W
Control: Siemens Sinumerik 840D
Punching force: 22 t
Maximum sheet thickness: 8 mm
Maximum material weight: 230 kg
C-frame structure
Coordinate guide for precision machining
Linear magazine with 3 clamps
Maintenance-free 3-phase servo drives
Repositioning unit with programmable stripper
Ball-fitted tables
2 parts chutes 500 × 500 mm
Laser TruFlow 3200
High-frequency excitation
Chiller unit
Laser control TASC 3
Encapsulated beam delivery
Programmable cutting gas pressure
Cutting head 5.0"
Cutting head 7.5"
Cutting head quick-change device
ControlLine
NitroLine
SprintLine
ContourLine
Hydraulic punching head
Single tool adapter
360° rotation for all tools
Programmable hold-down device
Tool length compensation
Tool spray lubrication
Vacuum slug removal
Forming function
Controller based on Sinumerik 840D
TFT control panel 12.0"
Program management
Online help
Integrated E-Shop
Integrated technology data
Diagnostic function with laser logbook
Network connection
Floppy drive
CE marking
Light barriers
Monitoring of gas pressure, temperature, and cooling water
Rapid hydraulic shutdown
Laser guard for scattered radiation
Compact dust extraction unit
MultiTool function
MultiBend function
Tapping function
Marking function
FocusLine
StripLine
Sheet collision detection
RCI Remote Control System
Additional clamp
Individually opening clamps
Height-adjustable clamps
Repositioning cylinders
Air cushion installation
Automatic shutdown
Chip conveyor with tilt container
Blow-out device for small parts
SheetMaster automation system
Suction frame 3000 × 1500 mm
Peeler cup
Suction plate module
Vacuum sensor
Central lubrication
Sheet thickness sensor for double sheet check
Automatic clamp closing
Loading/unloading parallel to production
Unloading monitoring
C-frame
Storage interface
Safety interface with secondary light barrier
GripMaster automation system
Scrap skeleton removal 3000 × 1500 mm
Automatic stacking of scrap skeletons
Scissors table for scrap stacking
Automatic adaptation to skeleton size
Sensor-based process monitoring
Tiltable scrap pallet 3000 × 1500 mm
FMC system with first storage interface
Safety devices for storage connection
