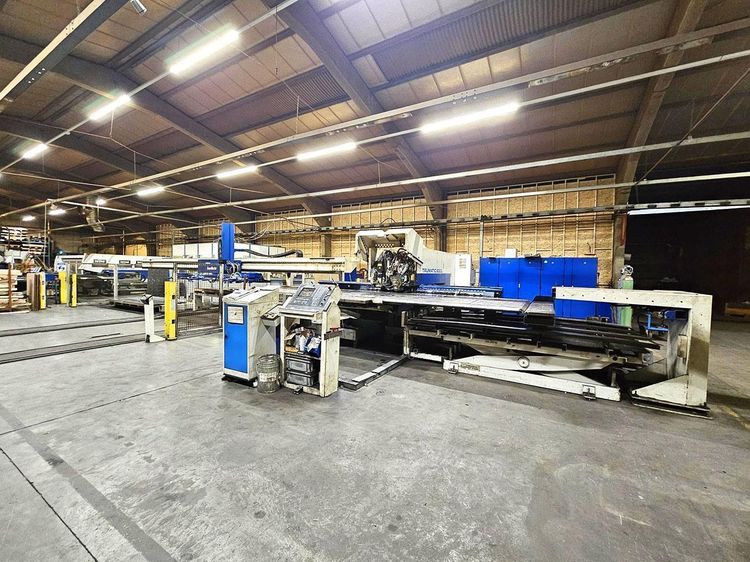

Trumpf Trumatic punch/laser combi 600L-1600 22 ton
Ref :
2777642-3-CP
Condition :
Used
Manufacturer :
Trumpf
Model :
Trumatic punch/laser combi 600L-1600
Pressure :
22 ton
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Punching pressure: 22 ton
Max sheet thickness by punching + nibbling: 8 mm
Max punching diameter: 76.2 mm
Max workpiece weight: 230 kg
X-axis travel: 3085 mm
Y-axis travel: 1740 mm
Control: Siemens Sinumerik 840 D
Tool changer
Number of tool positions: 18
Length: 8400 mm
Depth: 7800 mm
Weight: 22.5 ton
3 plate clamps
Sheetmaster unloading system
GripMaster
