Trumpf TRUPUNCH 1000 S19 19 tons (165 kN)

Working range (X): 3000 mm
Working range (Y): 1550 mm
Maximum sheet thickness: 6.4 mm
Maximum workpiece weight: 230 kg
Maximum stroke rate (punching): 600 strokes/min
Maximum stroke rate (marking): 1000–1300 strokes/min
Positioning accuracy: ±0.004 in
Repeatability: ±0.001 in
Tool capacity: up to 21 tools
Clamp capacity: 3 clamps
Maximum part size (removal flap): 400 x 600 mm
Maximum part size (fixed chute): 180 x 180 mm
Machine width: 7644 mm
Machine depth: 7666 mm
Machine height: 2195 mm
MultiTool function
MultiShear function
MultiBend function
Tapping function with thread counter
Marking / quick beading function
Deburring function
Roller technology function
Adaptive stroke calibration
Part removal system
Part removal flap
Sensor for part removal flap
Additional clamp
High ambient temperature capability up to 43°C
SheetMaster Compact 3000 x 1500 mm (AK05)

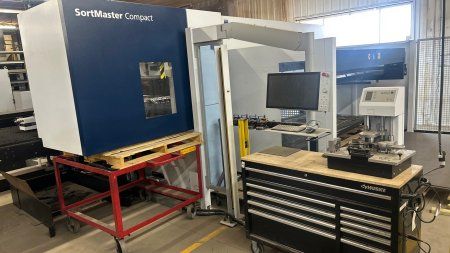

SortMaster Compact
