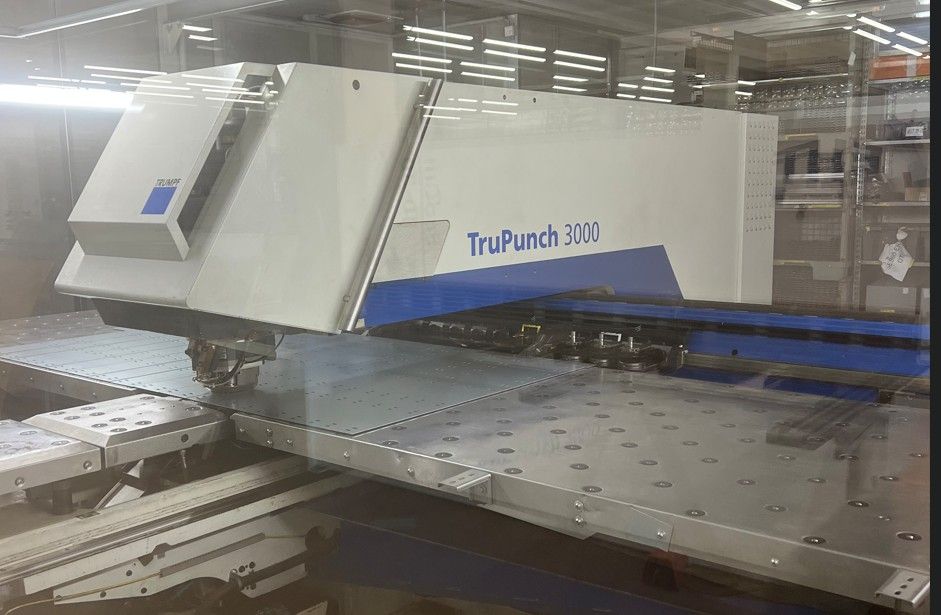

Trumpf TruPunch 3000-1300 18 ton

Working area: 2550 x 1280 mm
Punching force: 18 ton
Control: Bosch PNC-P
Max sheet thickness: 6.4 mm
Stable C-frame for easy access
Coordinate guide for high-precision machining
Linear magazine incl. 2 clamps
Drives with maintenance-free 3-phase servo motors
Repositioning unit with programmable stripper
Ball-fitted tables
Parts chute: 500 x 500 mm
Good parts container
Chip container
Automatic shutdown mechanism
Electro-hydraulic punching head
Rotatable single tool adapter
Programmable presser foot
Tool length compensation
Spray lubrication for punches
Vacuum slug removal
Forming
Controller based on Bosch PNC-B
Control panel with 12.0" TFT screen
NC program management
Production plan
On-line help
Integrated technology data
Diagnostic function
Shop floor programming in machine vicinity
Network connection and floppy drive
CE marking
Multi-beam light barriers
Rapid hydraulic shutdown
Function MultiTool
Function MultiShear
Function Tapping
Function deburring and roller technology
Adaptive stroke calibration
Manual adjustable presser foot force
Die spray lubrication
1 additional clamp
Repositioning cylinders
Sensor for part chute
Installation on air cushions
Sheet collision detection
Ball tables with loading and unloading air
