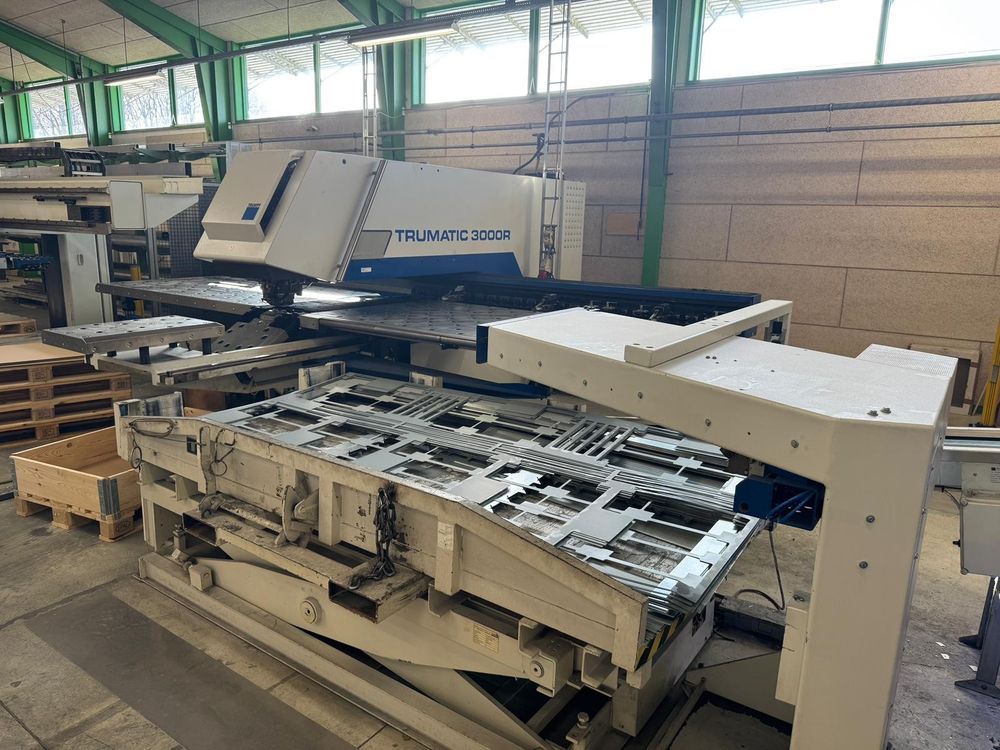

Trumpf TruPunch 3000 - 1300 (S06) (FMC) 18 to

Working area 2550 x 1280 mm
Punching force 18 to
CNC control Bosch PNC-P
Max. sheet thickness 6.4 mm
Max. material weight 150 kg
Stable C-frame
Coordinate guide for high-precision machining
Linear magazine with 19 tool stations
2 clamps
Maintenance-free drives
Repositioning device with programmable presser foot
Parts chute 500 x 500 mm
Good parts container
Chip conveyor
Automatic shutdown mechanism
Electro-hydraulic punching head
Rotatable single tool adapter
360° rotation of all tools
Programmable presser foot
Tool length compensation
Spray lubrication for punches
Vacuum slug removal
Forming function
Open control system based on BOSCH PNC-B
Control panel with TFT colour screen 12.0”
Program management
Production plan
On-line help
Integrated technology data
Diagnostic functions
Machine-oriented shopfloor programming
Disc drive and network connection RJ45
CE marking
Multi-beam light barriers
Rapid hydraulic shutdown
Function Multitool
Function MultiShear
Function MultiBend
Function tapping
Function SoftPunch
1 additional clamp
Repositioning cylinders
Sensor for part chute
Installation on air cushions
Sheet collision detection
MDE interface
SheetMaster: multi-functional sheet handling system for automated processing up to 2500 x 1250 mm
SheetMaster loading podest 2500 x 1250 mm
SheetMaster unloading podest 2500 x 1250 mm
SheetMaster suction frame
SheetMaster peeler cup
SheetMaster vacuum sensor
SheetMaster central lubrication
SheetMaster sheet thickness sensor for double sheet check
SheetMaster clamp closing automatically
GripMaster: automation component for removal of sheet skeletons 2500 x 1250 mm
GripMaster automatic stacking of sheet skeletons 300 mm
GripMaster process monitoring by sensors in skeleton grippers
GripMaster tiltable scrap skeleton pallet
GripMaster additional scrap skeleton pallet for sheet skeletons 2500 x 1250 mm
