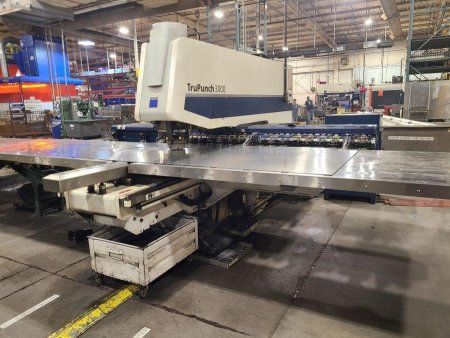

Trumpf TRUPUNCH 3000 20 tons

Punching force 20 tons
X-axis speed 3543 ipm
Y-axis speed 2362 ipm
Simultaneous X/Y speed 4252 ipm
C-axis speed 330 rpm
Punching stroke rate 1000 strokes/min
Marking stroke rate approx. 2500 strokes/min
Control Trumpf Control
Chip conveyor
Catch hoppers
Maximum sheet thickness 1/4"
Maximum workpiece weight 330 lbs
Maximum number of tools 18
Tool change time 0.3 s
Positioning accuracy 0.04"
Repeatability 0.0012"
Machine dimensions 197" x 256"
Power supply 460V / 60 Hz
Connected load 18 kVA
