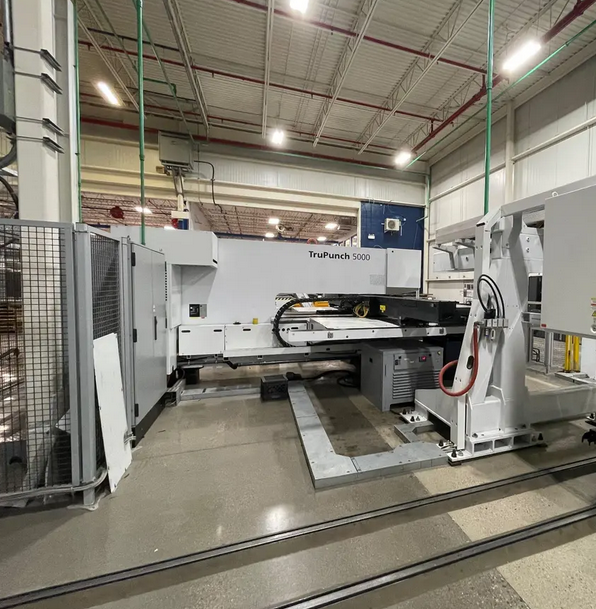

Trumpf TRUPUNCH 5000 25 TONS

61" x 120" working range
X-axis travel: 120"
Y-axis travel: 61"
Max sheet thickness: 0.31"
Max workpiece weight: 617 lbs
21 turret stations / 21 tools
X-axis speed: 3,937 ipm
Y-axis speed: 2,362 ipm
Simultaneous speed: 4,567 ipm
C-axis speed: 500 rpm
Punching rate: 1,350 SPM
Marking rate: 3,000 SPM
Tool changing time: 0.3 sec
C-frame construction
Max punching force: 25 tons
Approx. dimensions: 321" x 322" x 82"
Chip/slug conveyor with box
Sheet collision detection
Automatic clamp closing
Die spray lubrication system
Smart punch monitoring
Wireless operation interface
Siemens Sinumerik 840D control
54-station ToolMaster linear ATC
ShearMaster system
SheetMaster system
Integrated flattening
Multi shear function
Multi bend function
Tapping drive
High-speed marking
Engraving function
Adaptive stroke calibration
Anti-vibration isolation pads
Pneumatic reposition cylinders
Loading/unloading aids
Small parts blow-out device
Variable vacuum slug removal
RCI remote control interface
