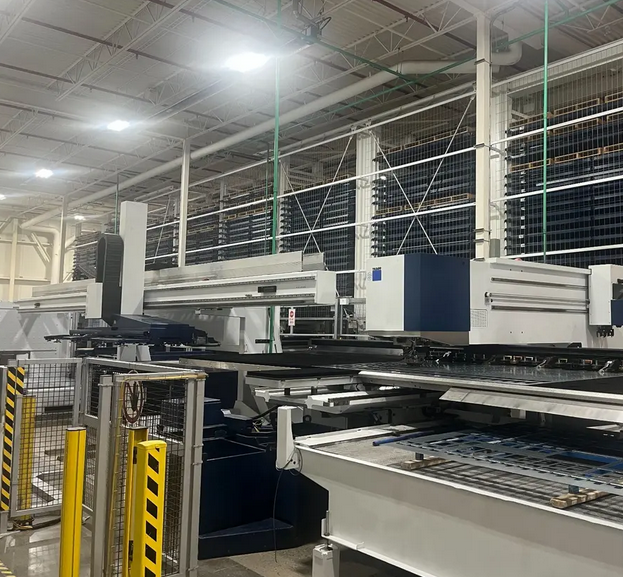

Trumpf TRUPUNCH 5000 LARGE FORMAT 25 T

Tonnage 25 T
Max Punching Force 25 T
Working Range X-Axis 120 in
Working Range Y-Axis 61 in
Max Sheet Thickness 0.31 in
Max Workpiece Weight 617 lb
X Axis Speed 3937 IPM
Y Axis Speed 2362 IPM
Simultaneous Speed 4567 IPM
C Axis Speed 500 RPM
Max Stroke Rate (Punching) 1350 SPM
Max Stroke Rate (Marking) 3000 SPM
Tool Change Time 0.3 sec
Turret Stations 21
Number of Tools 21
Machine Type C-frame

Control Siemens Sinumerik 840D
Active Die
Toolmaster Linear ATC (54 stations)
Shearmaster
Sheetmaster
Integrated flattening
Multi shear
Multi bend
Tapping drive
High speed marking
Engraving
Wheel technology forming and cutting
Adaptive stroke calibration
Die spray lubrication
Punch monitoring (breakage control)
Softpunch
Stripline
Automatic clamp closing system
Anti-vibration isolation pads
Pneumatic reposition cylinders
Chip and slug conveyor with box
Variable vacuum slug removal
Loading and unloading aids
Small parts blow-out device
Wireless operation point
Mobile control app
Remote control interface (RCI)
Sheet collision detection
Brush table 60 x 120 in
Table size 61 x 120 in
Machine dimensions 321 x 322 x 82 in
