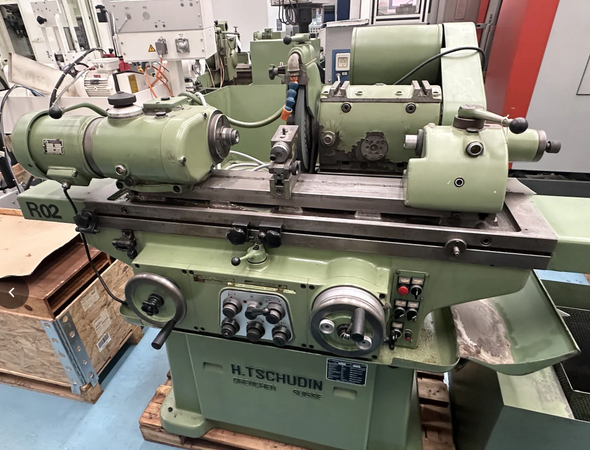

Tschudin HTG 400
Ref :
2804275-3-CP
Condition :
Used
Manufacturer :
Tschudin
Model :
HTG 400
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Center Height: 100 mm
Distance Between Centers: 400 mm
Grinding Wheel Diameter: 300 mm
Grinding Wheel Width: 50 mm
Grinding Wheel Bore: 127 mm
Grinding Wheel Speed: 1500 - 1900 RPM
Grinding Wheel Speed Steps: 3
Workhead Speed: 65 - 500 RPM
Workhead Rotation: 360°
Spindle Bore: 23 mm
Spindle Taper: Morse Taper 4
Tailstock Taper: Morse Taper 3
Table Swivel: 9°
Table Speed: Up to 5 m/min
Voltage: 380 V, 3 Phase, 50 Hz
Grinding Wheel Motor Power: 2.5 CV
Total Power: 4 CV
Dimensions: 1600 x 1200 x 1550 mm
Weight: 1600 kg
Right and Left Grinding Wheel Configuration
Tailstock
Swiveling Wheel Dresser
Coolant System
