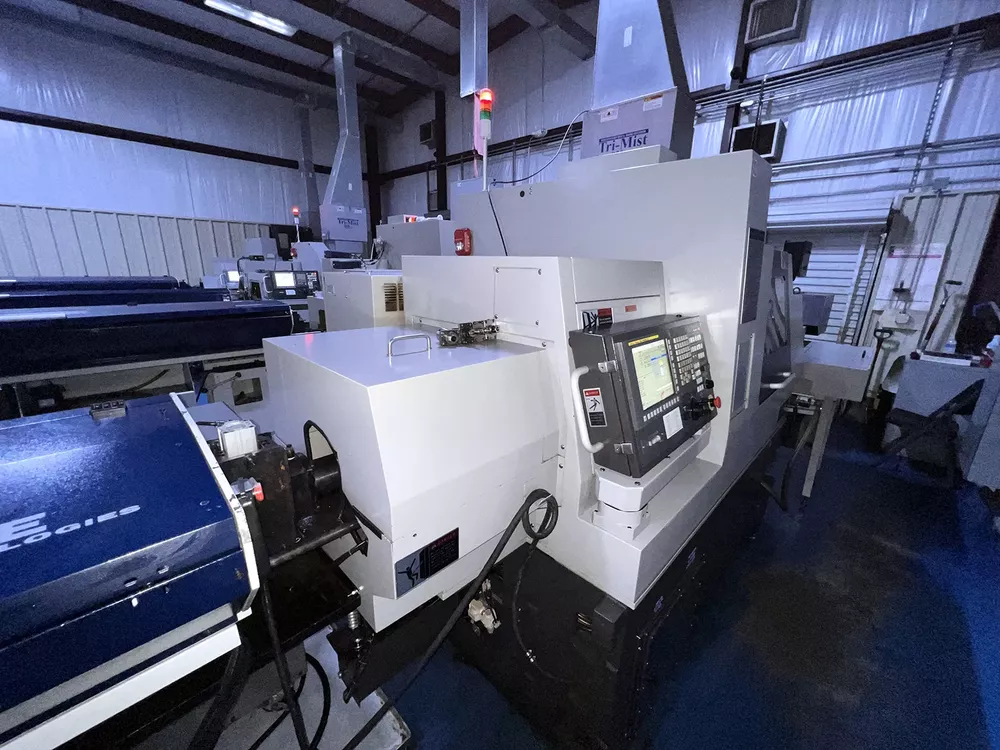

Tsugami CNC CONTROL 6000 RPM BO386-III 2 Axis

Tsugami BO386-III
2018

High Speed Rapid Traverse: 1260 IPM
Max Bar Capacity: 1.5" (38 mm)
Max Tool Positions: 29
Max Drilling Diameter: 0.511" (13 mm)
Max Tapping Diameter: M12
Main Spindle Indexing: 360° (Full C-Axis)
Main Spindle Speed: 200 – 6,000 RPM
Main Spindle Motor: 11 kW
Back Spindle Indexing: 360° (Full C-Axis)
Back Spindle Speed: 200 – 7,000 RPM
Back Spindle Motor: 5.5 kW
Front Turning Stations: 5
Back Turning Stations: 5
Front Drilling Head Stations: 5
Turning Stations: 2
Live Cross Mill Stations: 4
Live Sub Milling Stations: 8
Driven Tool Speed: 200 – 6,000 RPM
Driven Tool Motor: 1.4 kW
Power Source: AC 220V / 3-Phase / 60 Hz
Power Requirement: 22.4 kVA
Dimensions Without Bar Feeder: 88" x 60" x 81"
Weight: Approx. 10,694 lbs

Edge Patriot 5101 12' Barfeed
Tri-Mist Collector
Miscellaneous Tooling
