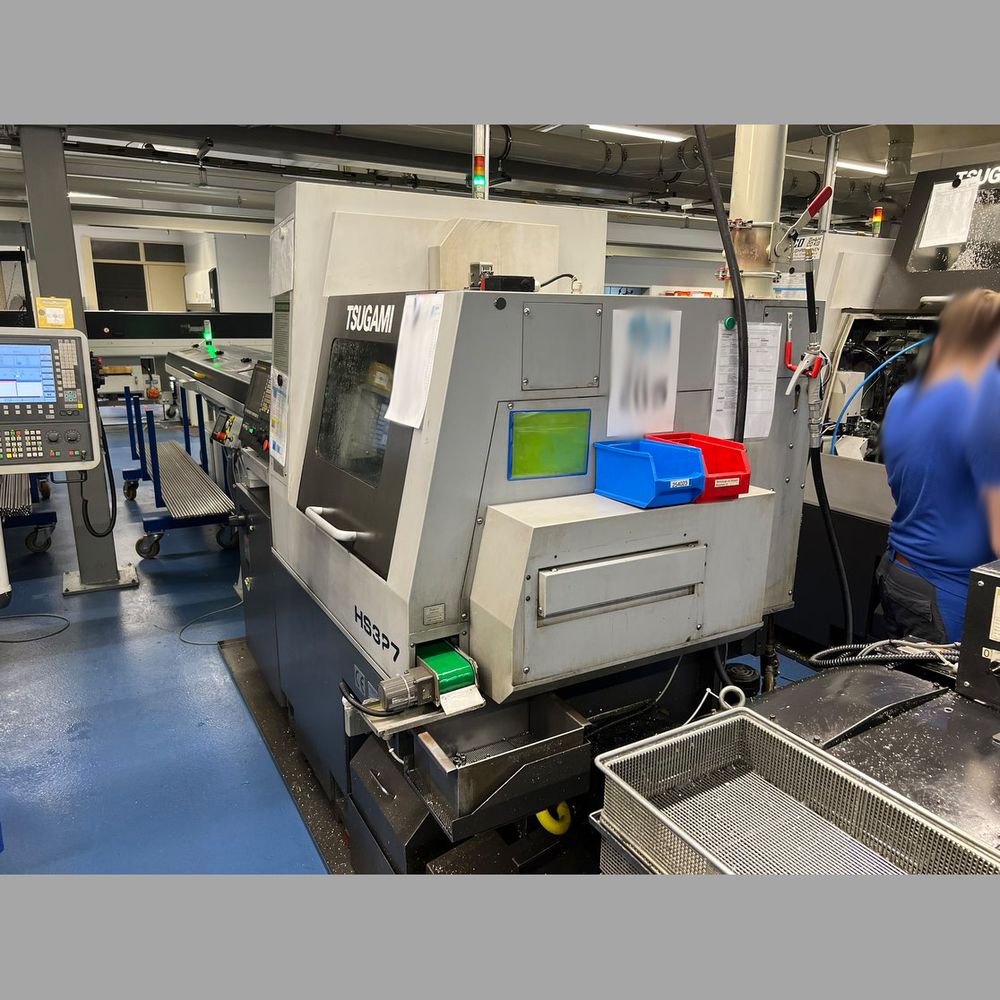

Tsugami CNC CONTROL 8000 1/min HS 327 4 Axis

Max. turning diameter: 32 mm
Max. turning length: 320 mm
Max. main spindle speed: 8000 1/min
Max. main spindle power at 10-40/100% duty ratio: 5.5/3.7 kW
Main spindle bore: 8–32 mm
Axis at main spindle unit: C
Headstock stroke main spindle: 320 mm
Max. opposed spindle speed: 8000 1/min
Max. opposed spindle power at 10-40/100% duty ratio: 3.7/2.2 kW
Axis at opposed spindle unit: C
Coolant through main spindle
Workpiece discharge unit in opposed spindle
Workpiece pusher in opposed spindle
Control: Fanuc 32i MB
Fully enclosed work area
Light in working area
Preparation for central oil/emulsion mist extraction
Chip conveyor
Machine operates/operated with oil
Coolant unit with paperband filter
High pressure pump
Automatic CO2 fire extinguishing system
Part outfeed conveyor
Bar loader/magazine
Tapping without compensation chuck
Circumference surface milling (C- and Z-axis interpolation)
Polygon milling
Warning lamp
Collet chuck: 1 set
Tool holder for turning tools: 1 set
Tool holder for driven tools: 1 set
Total power requirement: 21 kVA
Machine dimensions (LxWxH): 2150 x 1280 x 2010 mm
Machine weight: 3500 kg
Equipped with B-axis
Change over to short drilling possible
New coolant unit BÜCHELE SFB 300eco with 100 bar high pressure pump
Bar loader changed to TOP Automazioni NF 334SX in 2023
