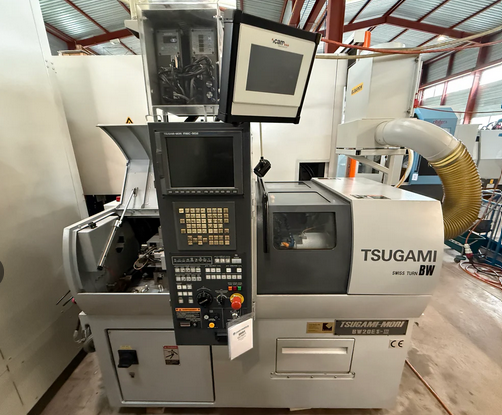

Tsugami CNC Controller 10,000 rpm BW 20 E 9 Axis

Rapid traverse: 24 m/min
Number of axes: 9
Control type: CNC Swiss-type automatic lathe
Number of spindles: 2
Maximum turning diameter: 20 mm
Main spindle speed: 200–10,000 rpm
Main spindle motor power: 1.1 / 3.7 kW
Sub-spindle speed: 200–10,000 rpm
Sub-spindle motor power: 1.1 / 3.7 kW
Number of tools: 20
Power supply: 3 × 400 V / 50 Hz
Total power: 12 kVA
Bar loader: LNS Hydrobar Express 220
Parts catcher
Lamp
Coolant system
Oil mist extractor ELBARON
Set of collets
Set of toolholders
Set of service tools
Machine dimensions: 1800 × 1300 × 1800 mm
Machine weight: 2500 kg
