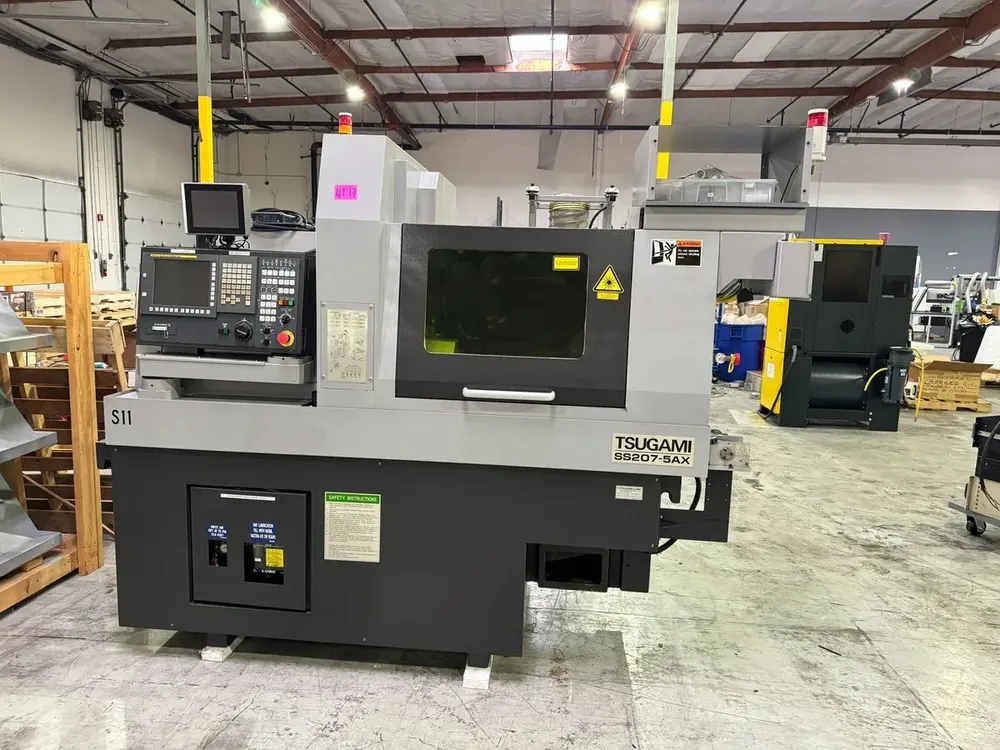

Tsugami CNC Controller 10,000 RPM (main spindle) SS207-5AX 7 Axis

X-Axis Travel Not specified
Y-Axis Travel Not specified
Z-Axis Travel Not specified
Rapid Traverse 32 m/min
C Axis Not specified
B Axis B1 axis tool spindle positioning
W Axis Not specified

Control Not specified
Laser system IMG 250LS fiber laser system
Laser cooling water cooled
Laser enclosure Class 1
Gas pressure 5–350 psi
Through coolant 246 psi
Front coolant up to 1000 psi

Bar Capacity 20 mm
Swing Not specified

Spindle Speed 200–10,000 RPM (main spindle)
Back spindle speed 200–10,000 RPM
Rotary tool spindle speed 200–8,000 RPM
Rotary tool speed 5,000 RPM
Spindle Power 2.2 kW
Spindle Taper Not specified

Milling Specifications
Rotary tool positions 6 (3 main + 3 sub)
ER16 main spindle collet
ER11 sub spindle collet
Positioning angle 0–110°
Servo controlled positioning system

Feedrates Rapid traverse 32 m/min

Chuck / Tooling
Main spindle tool capacity 6 positions
Sub spindle tool capacity 8 positions
Turning tool positions 8
ID positions main 4
ID positions sub 8
Live tool positions 3
Tool changer Not specified

Machine Size / Weight
Weight 7,260 lb
Center height 39.37 in
Additional Equipment
FMB Micromag bar feeder 0.8–20 mm
High speed face drill system
Parts catcher system
Chip conveyor system
Rear work collection system
Laser cutting capability 250 W fiber laser
Servo driven guide bushing system
Abile software system
