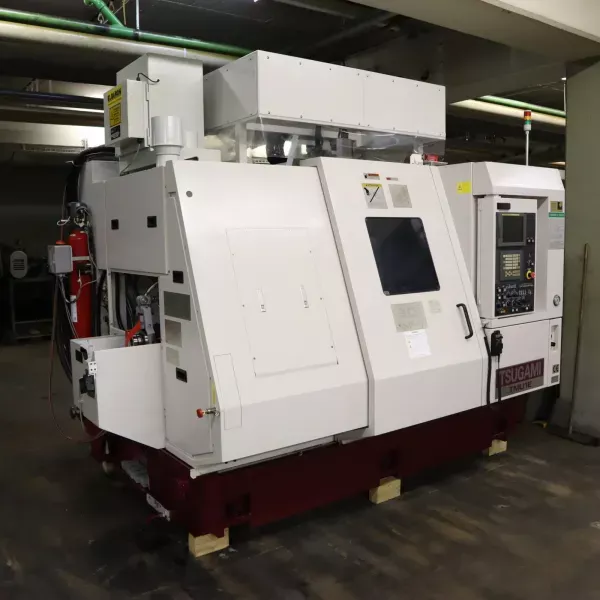

Tsugami Fanuc 18i-TB 10000 rpm TMU1E

X1 travel: 380 mm
Y1 travel: 110 mm (+-55 mm)
Z1 travel: 560 mm (+135 mm tool change)
X2 travel: 130 mm
Z2 travel: 800 mm
A1 travel: 250 mm
A2 travel: 800 mm
B-axis: +-105°
C-axis: main and counter spindle

Rapid traverse A2, Z1, Z2: 40 m/min
Rapid traverse A1, X1, X2, Y1: 24 m/min
Control: Fanuc 18i-TB

Max. bar passage: Ø 38 mm
Max. turning length: 250 mm
Main spindle speed: 6000 rpm
Main spindle motor power: 11 kW
Counter spindle speed: 6000 rpm
Counter spindle motor power: 11 kW
Milling spindle speed: 10000 rpm
Milling spindle motor power: 5.5 kW
Turret head stations: 16
Turret tool size: 20 x 20 x 125 mm
Boring bar holder diameter: Ø 32 mm
Automatic tool changer type: Sandvik Coromant Capto C4
Max. tool size: Ø 80 mm x 150 mm (4 kg)
Tool capacity: 60
Tool change time: 0.8 sec
Machine weight: 8000 kg
Machine dimensions: 3650 x 2200 x 2245 mm
Power connection: 40 KVA
Pneumatic connection: 0.5 MPa
Discharge rate: 300 dm³/min

Equipment
Chip conveyor
High pressure pump
LNS Hydrobar Sprint S42 bar loader (2011)
Elbaron oil mist separator
Siemens fire extinguishing system
Guide elements for LNS bar loader
Complete documentation (spare parts catalog, programming manual, Tsugami TMU1E operating manual, maintenance manual, LNS Hydrobar Sprint S42 operating manual, Fanuc 18i-TB operating manual, electrical diagrams, etc.)
Sandvik Coromant steels
Various indexable inserts
Renishaw MP12 probe
Tool holder inserts
Spare battery
Micro Centric high-precision lathe chuck
2 standard size boring bar holders
2 standard size double boring bar holders
2 size L double boring bar holders
2 size LL double boring bar holders
Various guide bushings
Collet set: 144 ER20 collets, 97 ER32 collets (241 total)
31 Weldon chucks
82 lathe spindle collets (main and counter spindle)
84 Capto C4 holders for milling spindle (shrink fit chucks, collets) with ~10 additional in tool magazine
