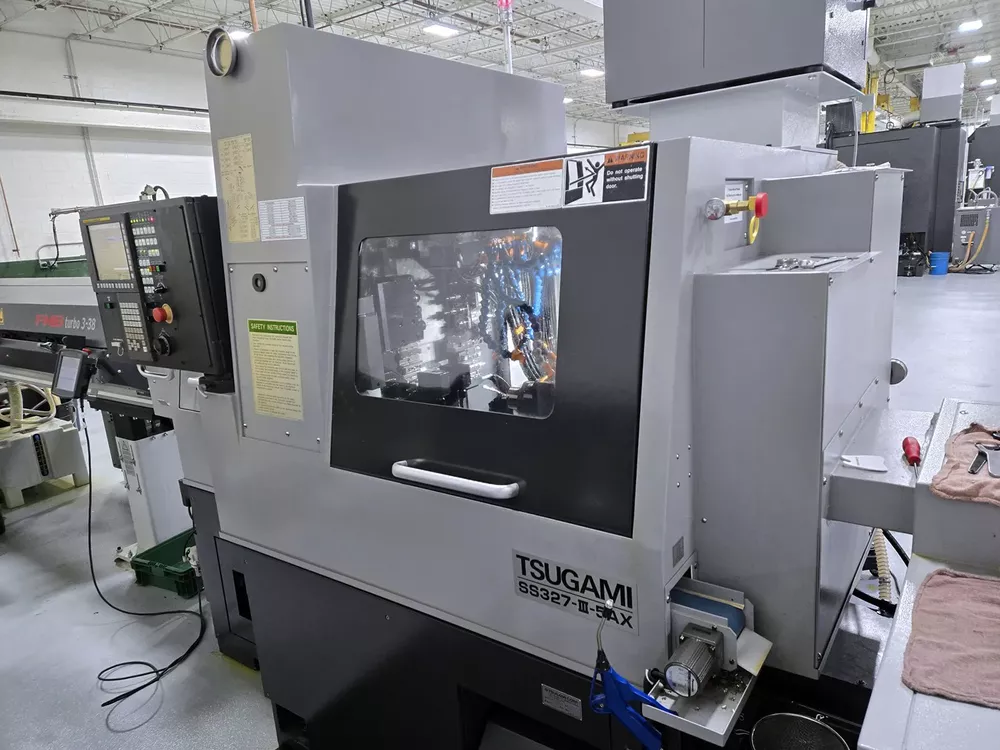

Tsugami Fanuc 31i 8,000 rpm SS327-III 5AX 8 Axis

Control: Fanuc 31i
Max barstock diameter: Ø32 mm (1.26 in.)
Max machining length (direct-drive guide bushing): 330 mm (12.99 in.)
Chucker mode: 70 mm (2.76 in.)

Max drilling diameter: Ø12 mm (0.47 in.)
Max tapping diameter: M10
Max back spindle chucking barstock diameter: Ø32 mm (1.26 in.)
Max back spindle drilling diameter: Ø10 mm (0.39 in.)
Max back spindle tapping diameter: M8
Max tool spindle drilling diameter: Ø8 mm (0.31 in.)
Max tool spindle tapping diameter: M6
Max tool spindle slotting cutter diameter: Ø45 mm (1.77 in.)
Main spindle speed: 200–8,000 rpm
Back spindle speed: 200–8,000 rpm

MP Systems 2000 PSI V2 high-pressure coolant with 8 outputs
FMB Turbo 3-38 bar loader
Nakanishi iSpeed3 spindle control
LNS Turbo Micro Hinge chip conveyor
Eco Mist HPMC collector
Rear work collection through sub spindle
Chucker kit
B-axis
