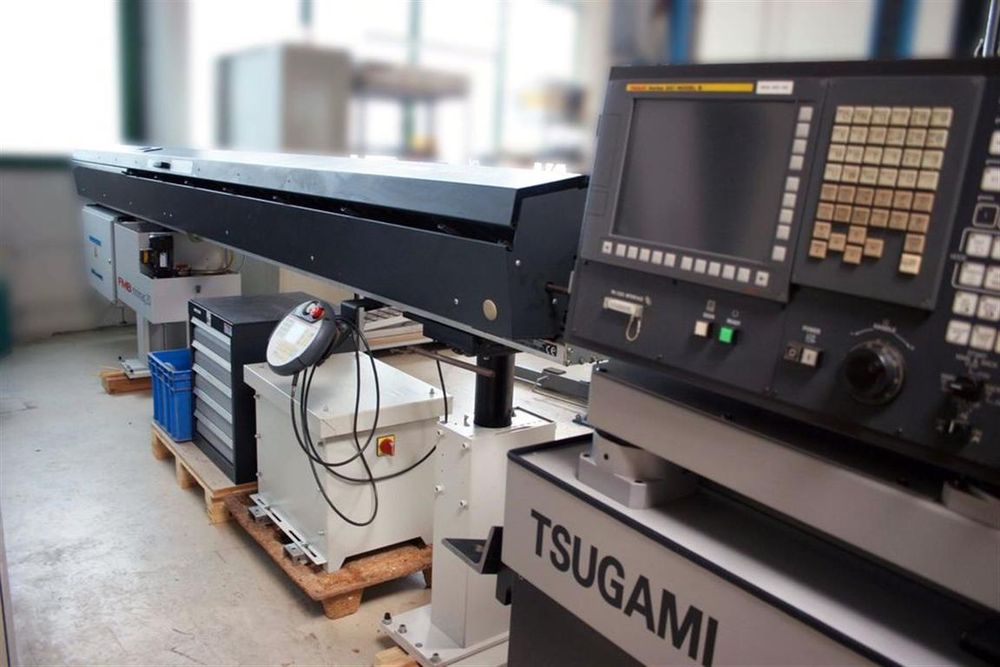

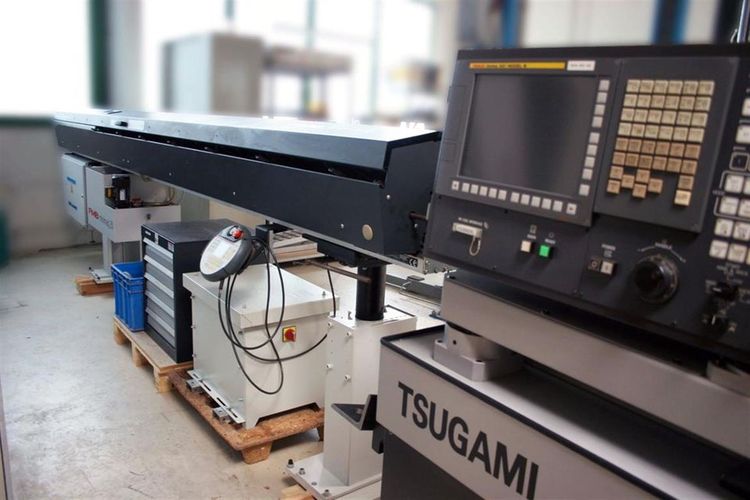

Tsugami FANUC 31i-A 10,000 rpm HS 2075AX 7 Axis

Axis configuration: 7 controlled axes
Simultaneous machining: up to 5 axes
B-axis range: 0°–130° programmable
C-axis on main spindle
C-axis on sub-spindle
CNC control: FANUC 31i-A
CNC sliding and fixed headstock turning/milling center
Conversion from sliding headstock to fixed headstock turning
Driven tooling
Deep hole drilling stations
High-speed spindle Nakanishi
Rear-side slide with Y-axis
Cross drilling on rear side
Chip conveyor
Fire suppression system
Bar feeder FMB Minimag 20
Bar capacity: 3–20 mm
Turning diameter over bed: 20 mm
Turning length: 250 mm
Main spindle speed: 10,000 rpm
Sub-spindle speed: 10,000 rpm
Main spindle motor power: 3.7 kW
Sub-spindle motor power: 2.2 kW
Tool capacity: 35 tools
Machine dimensions: 2110 x 1200 x 1885 mm
Machine weight: approx. 3300 kg
Operating hours: approx. 7200 h
